Stock Ref 4043 - OMAS model ML16 4 head inline liquid filling station

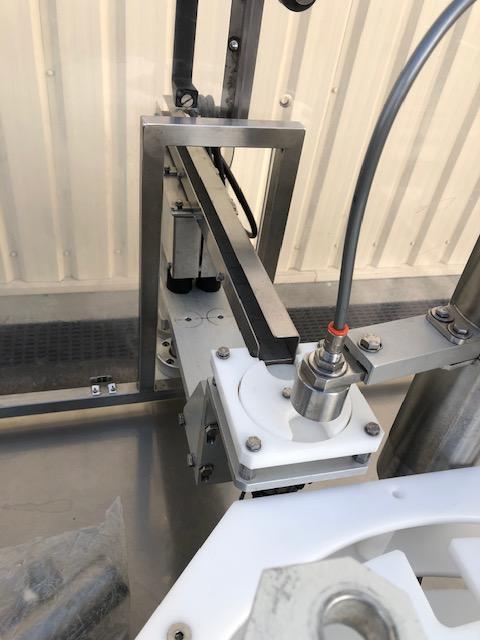

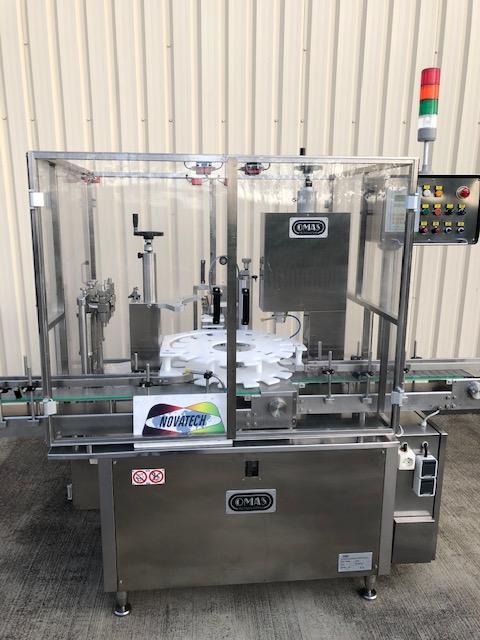

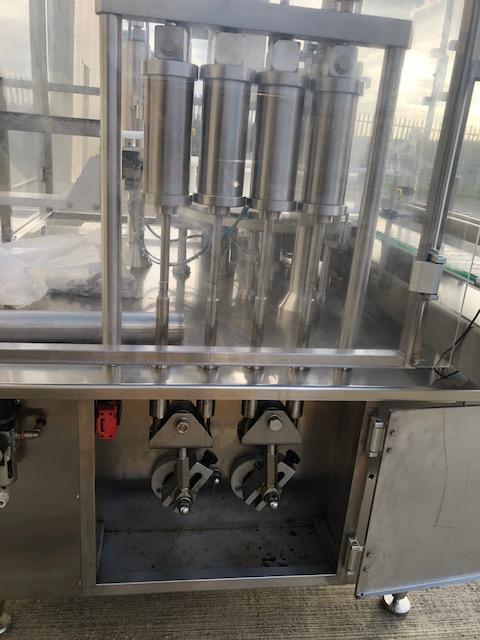

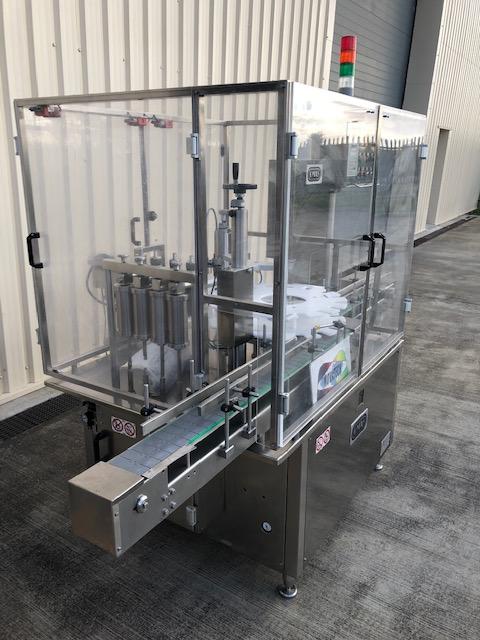

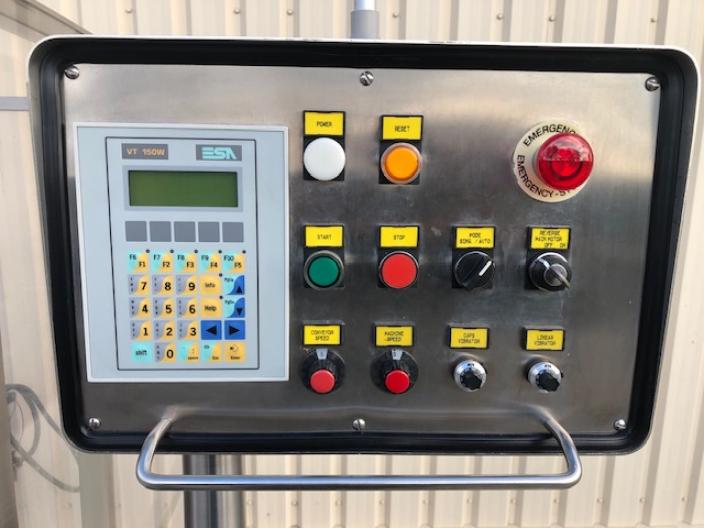

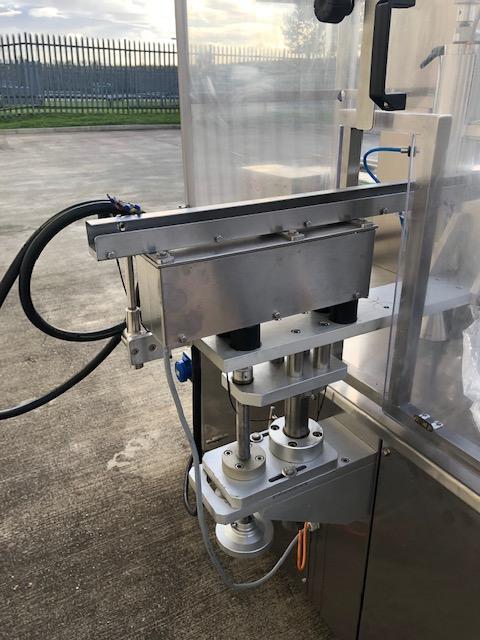

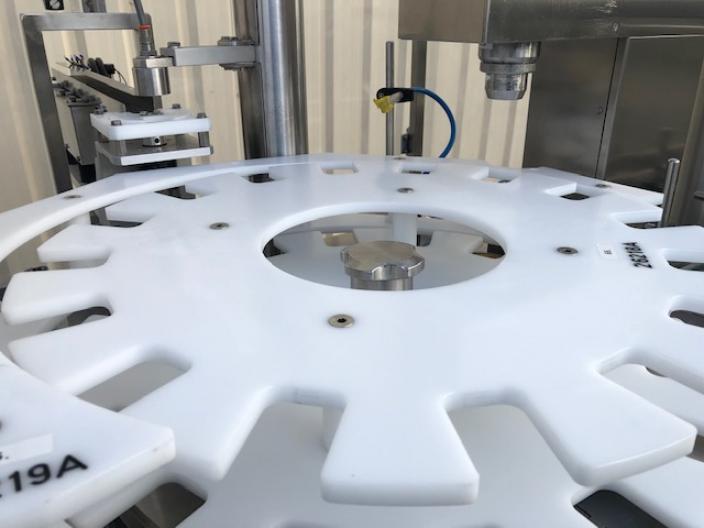

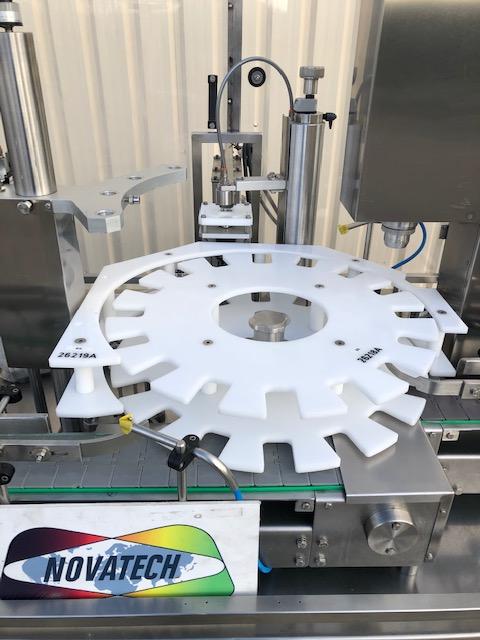

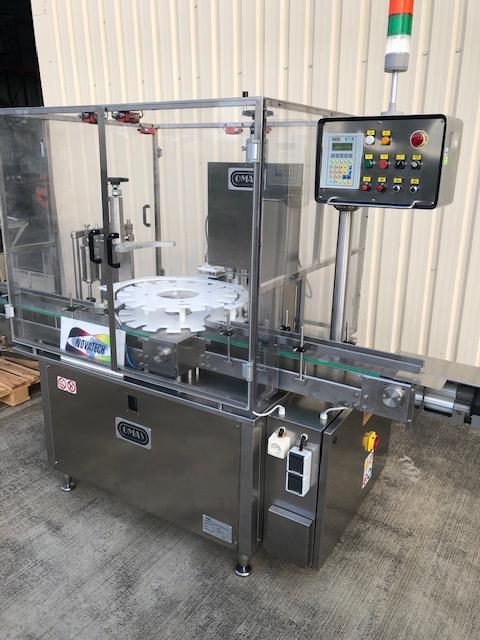

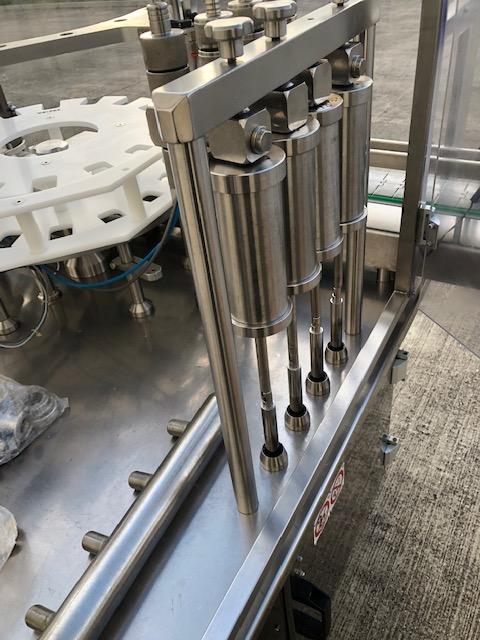

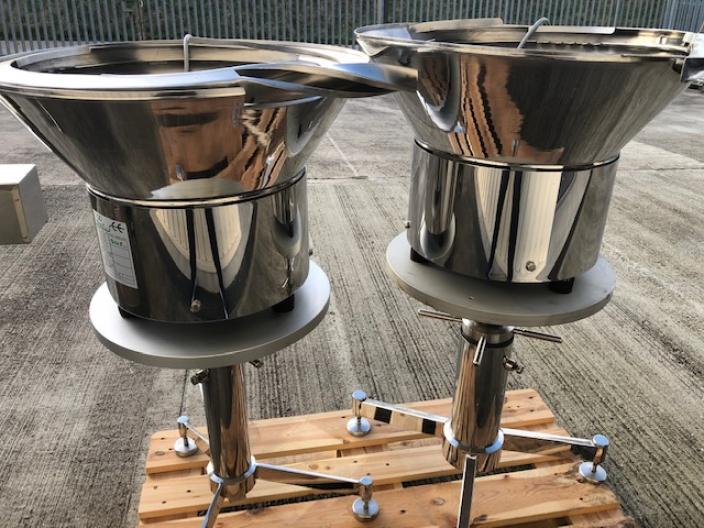

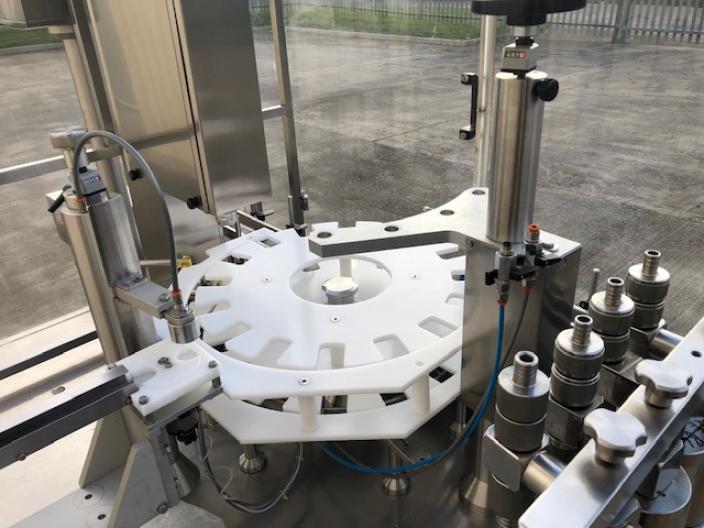

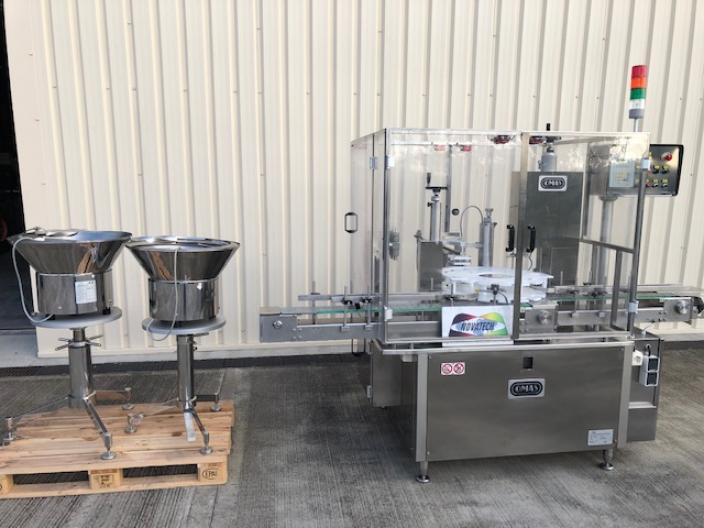

OMAS model ML16 Monobloc fully automatic machine, constructed in 316L grade stainless steel, Four head inline diving head liquid filling station, positive shut off tips can be used if required. Variable speed 100mm wide slat -band conveyor and infeed/out-feed gating control. Star-wheel transfer of filled bottles to the plugging/ insert and cap placement station supplied from two stainless OZAF vibratory feeders located at the rear of the machine. Bottles then progress to the pre-set torque capping station and then back onto the line conveyor. Separate control panel for all machine functions. It is fully guarded with electrical safety interlock devices on all opening panels. Fill range 50 to 500ml: max bottle dia 65mm: max speed 50 bpm: Installed power 4kw: Approx overall dimensions 2.7 x 1.7 x 2.1m high: weight 1,300kg. Standard nozzles to be supplied to suit clients bottles.
