Ref 4478 Romaco Fryma Koruma Dinex process mixing vessel suite

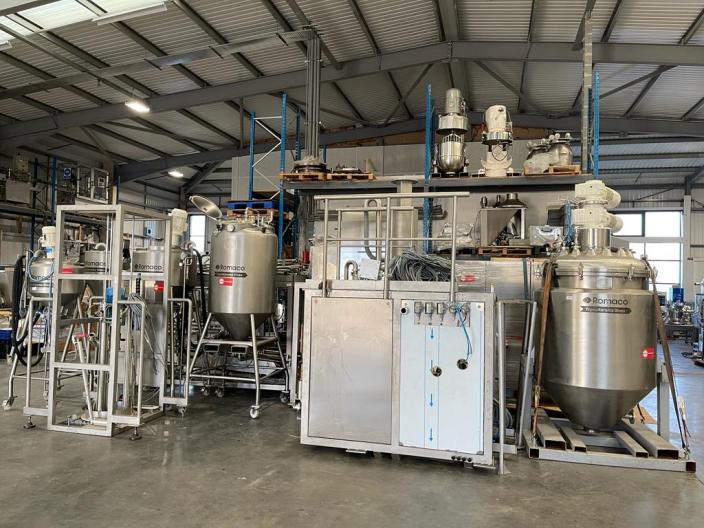

Romaco Fryma Koruma Dinex process mixing vessel suite in UNUSED condition comprising of the following:-
Main Process Vessel:

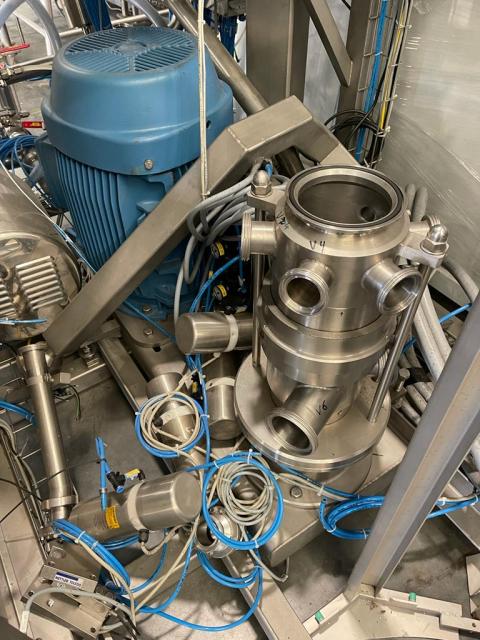

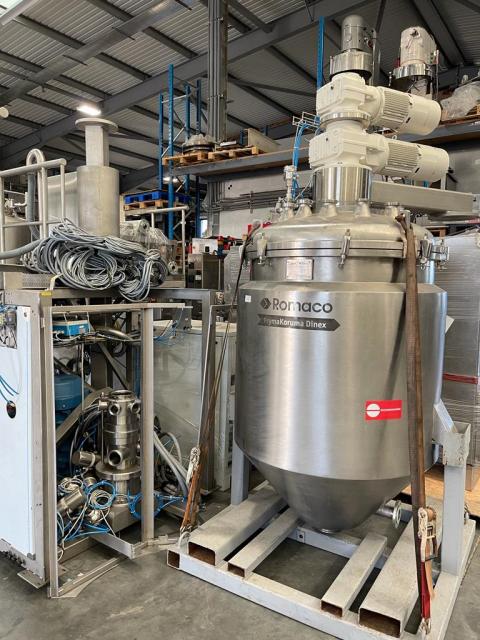

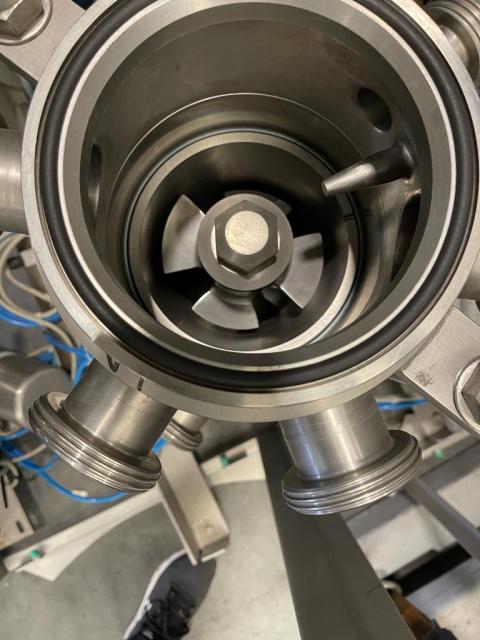

1300L scraped wall, contra rotating, jacketed, full vacuum +6bar. Bottom entry homogeniser mounted in vessel base unit which also houses the hydraulic raise/lower powerpack for the vessel lid, vacuum pump, centrifugal CIP pump, shrouded in stainless steel. 8 off top connections and level sensor, 300mm dia hinged safety interlocked chargeport with sightglass and light.

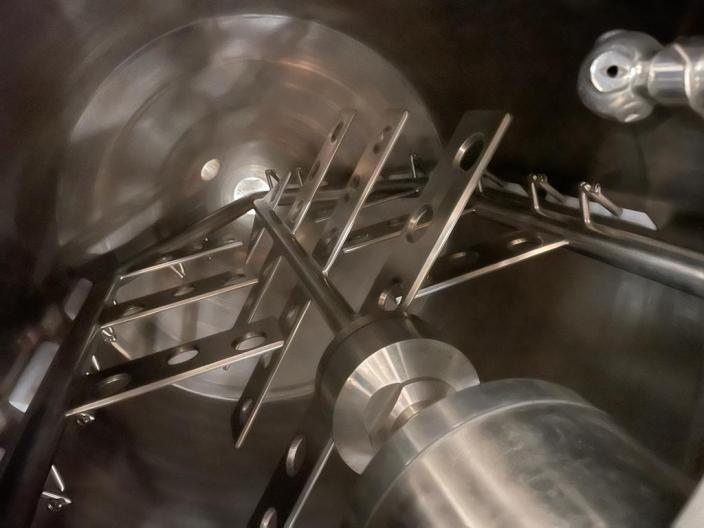

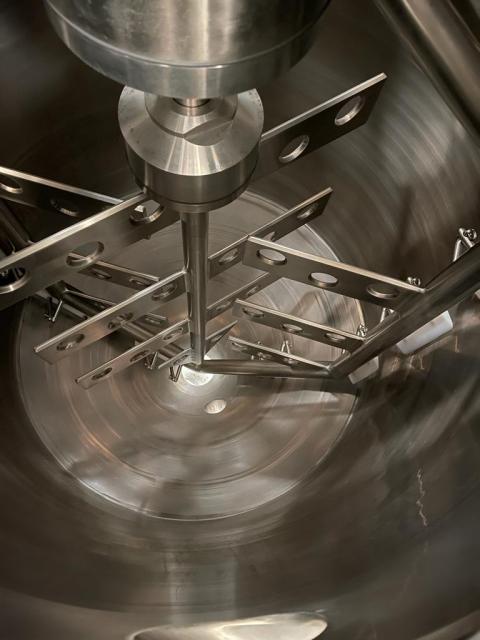

Scrape wall mixer 5kw, contra rotating mixer 4kw. 45kw 2865rpm homogeniser.
Additional vessels:

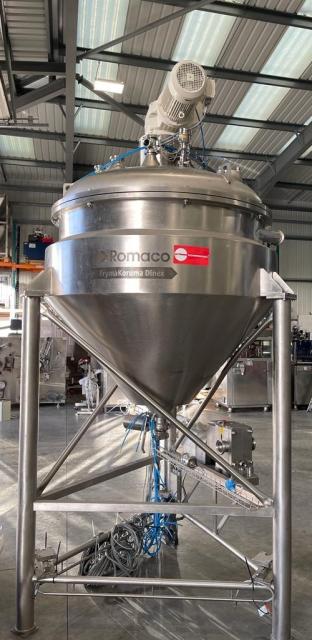

1300L jacketed premix vessel on load cells, scraped wall mixer with baffles. 400mm dia safety interlocked hinged chargeport with sightglass and light. 4 off top entry infeed connections, 3" stainless steel lobe pump mounted onto vessel framework, 4" outlet with pneumatic actuated valve.
100L powder phase vessel with pneumatic actuated hopper, mobile.
85L liquid phase jacketed mixing vessel, 3 blade radial mixer, jacket 6 bar pressure, mobile.
300L jacketed liquid phase vessel, 6 bar jacket pressure, 3 blade offset propellor style mixer, temp probe, 2" outlet valve with pneumatic actuator, 2,2kw mixer drive, mobile.
700L stainless steel liquid phase vessel, 5 off top connections, 400mm dia safety interlocked hinged chargeport, sightglass with wiper, light. 2 off sprayball systems, 2" outlet valve with pneumatic actuator.
Also included:
Stainless steel barrel drum pump, full pneumatic operation mounted in a full stainless steel enclosure. Full feature control panel with HMI, electrical panels, gantry with handrail/steps and all associated pipework. Full manuals and documentation pack included. This line was over £600,000 new.
