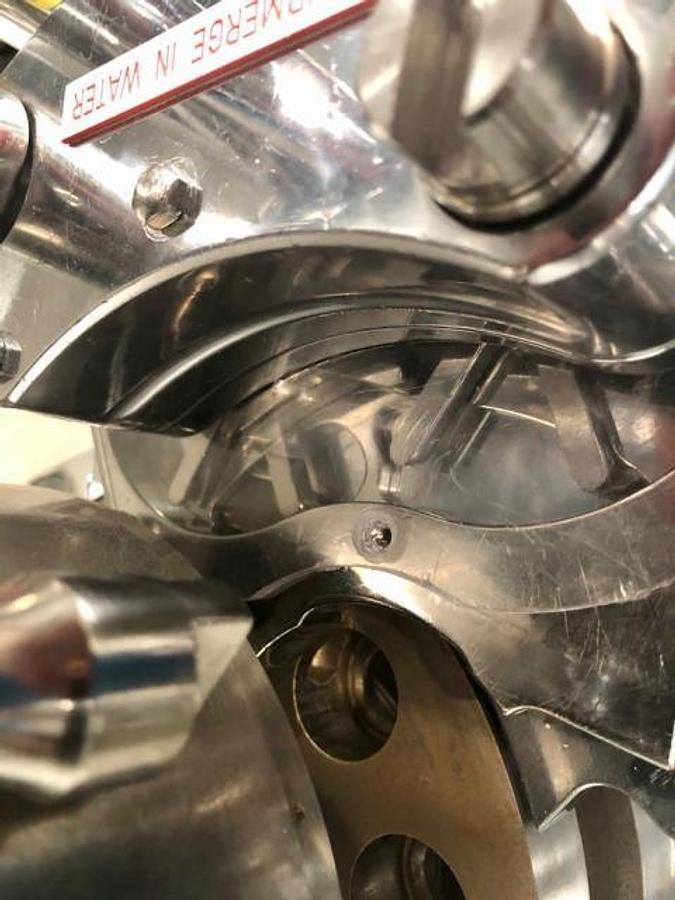

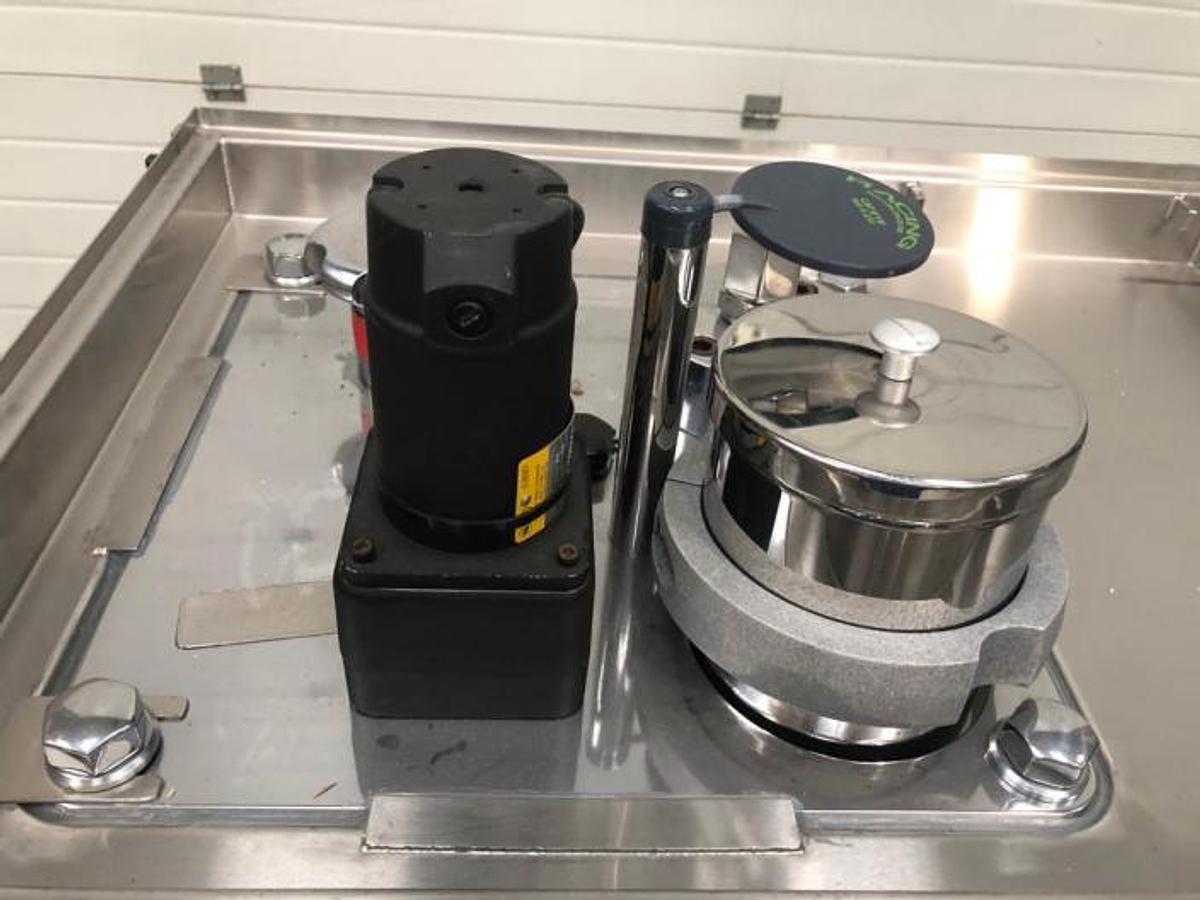

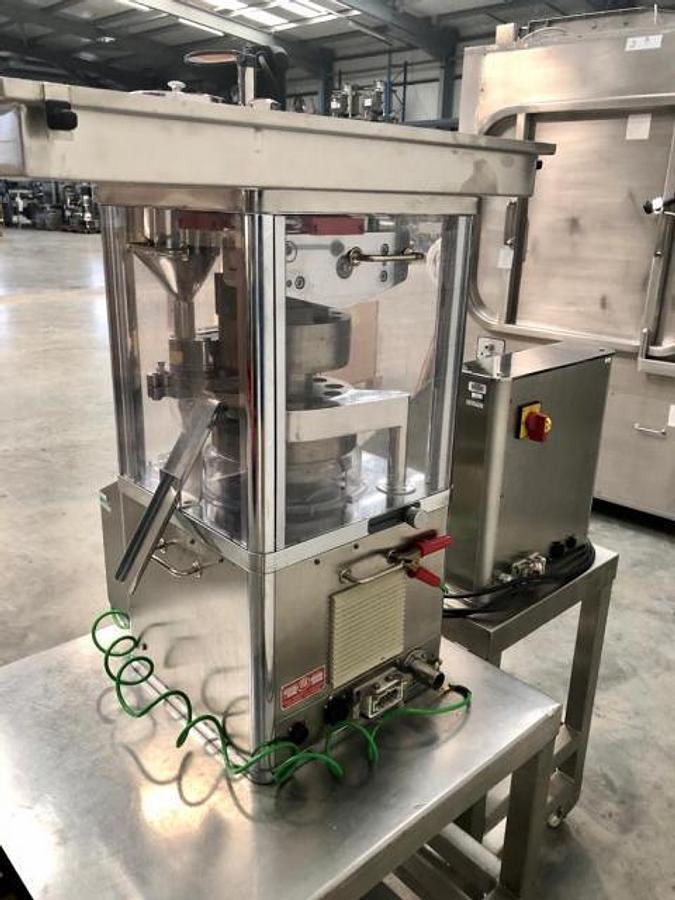

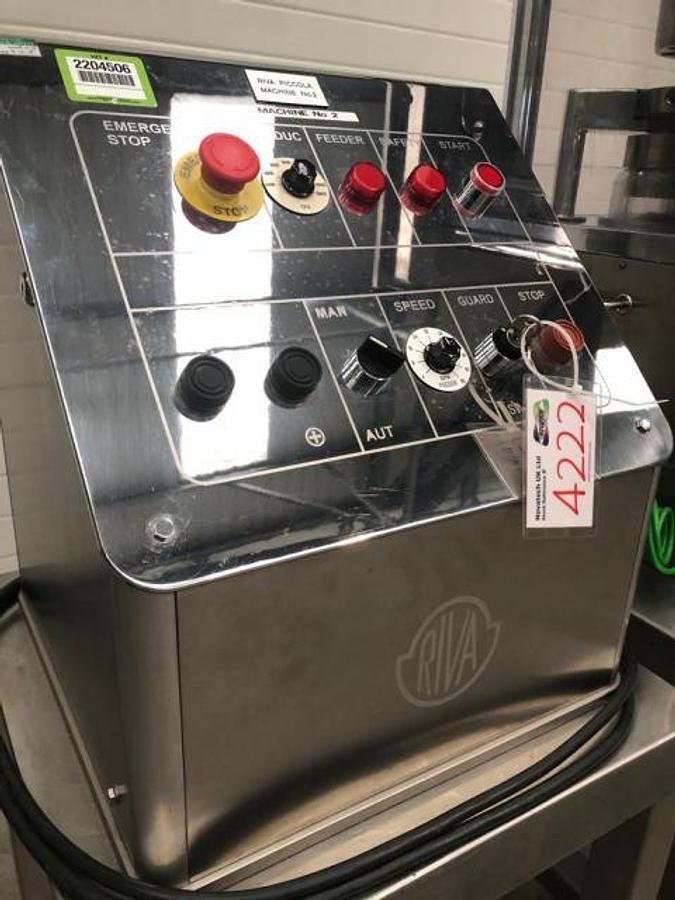

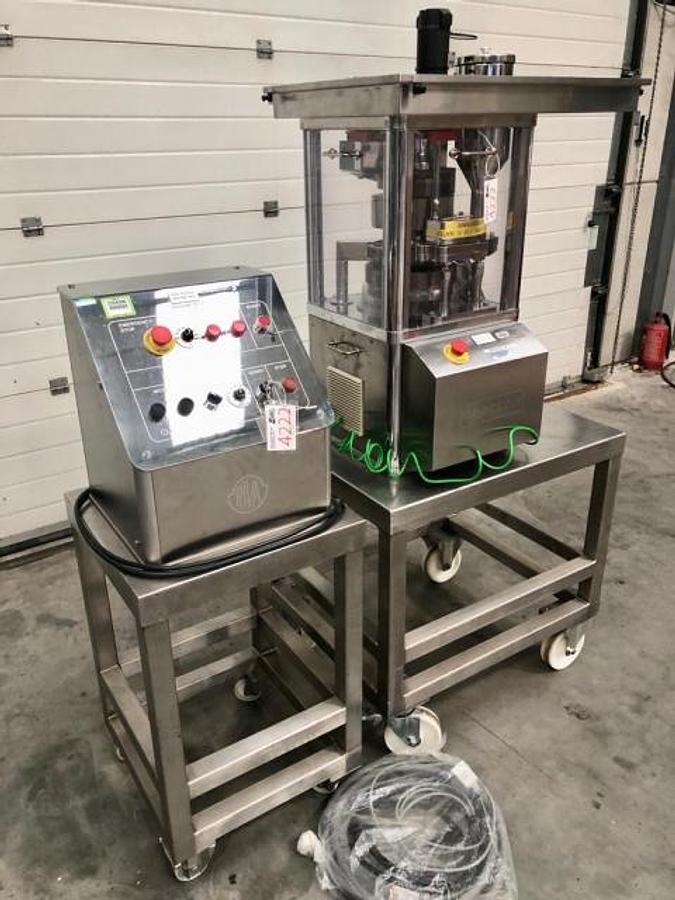

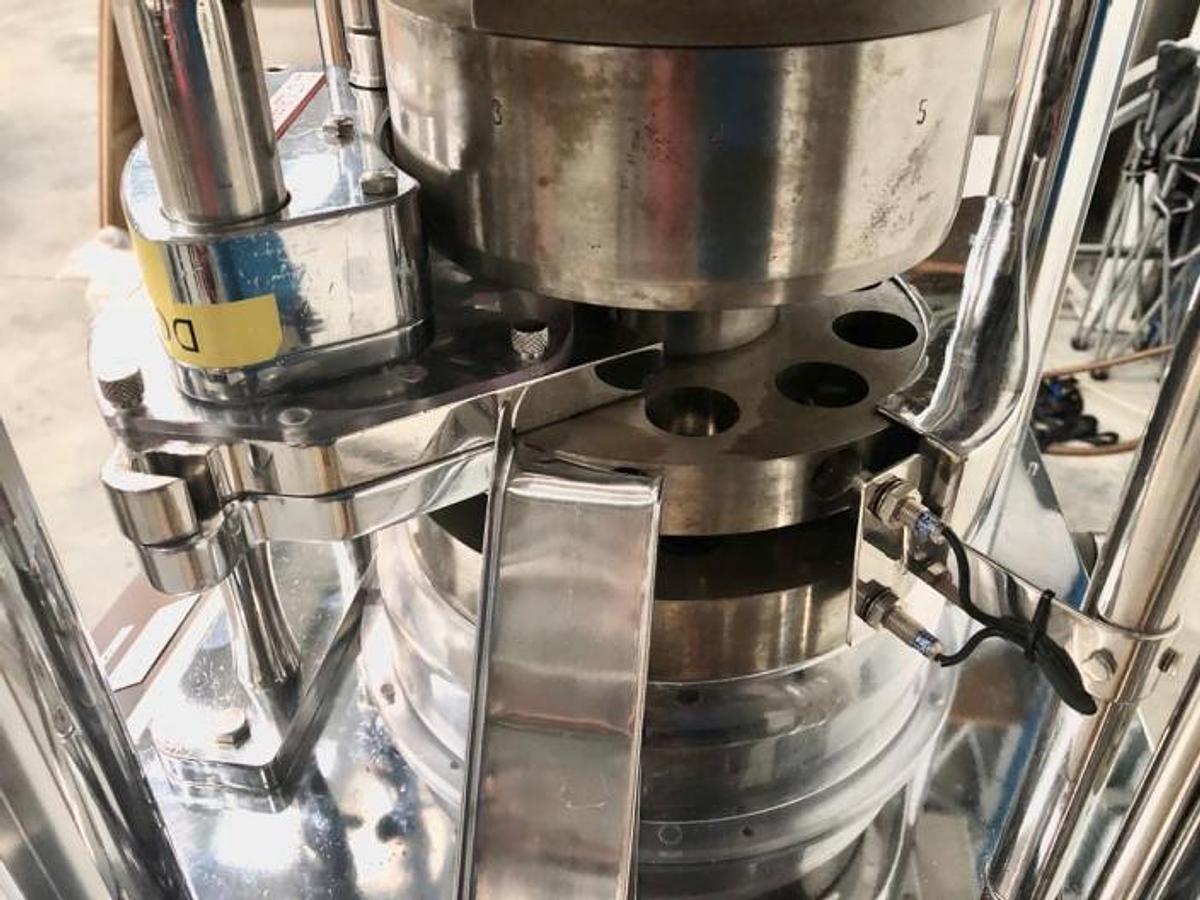

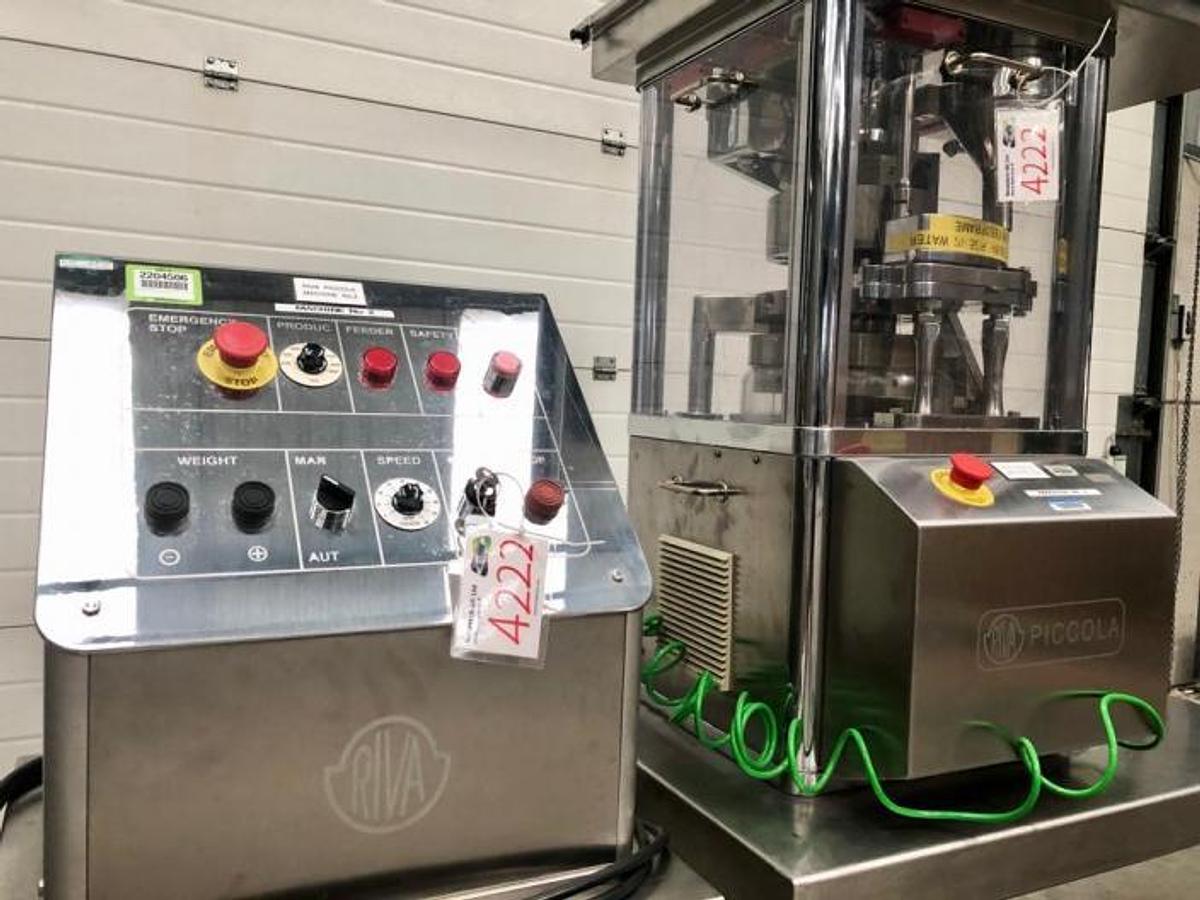

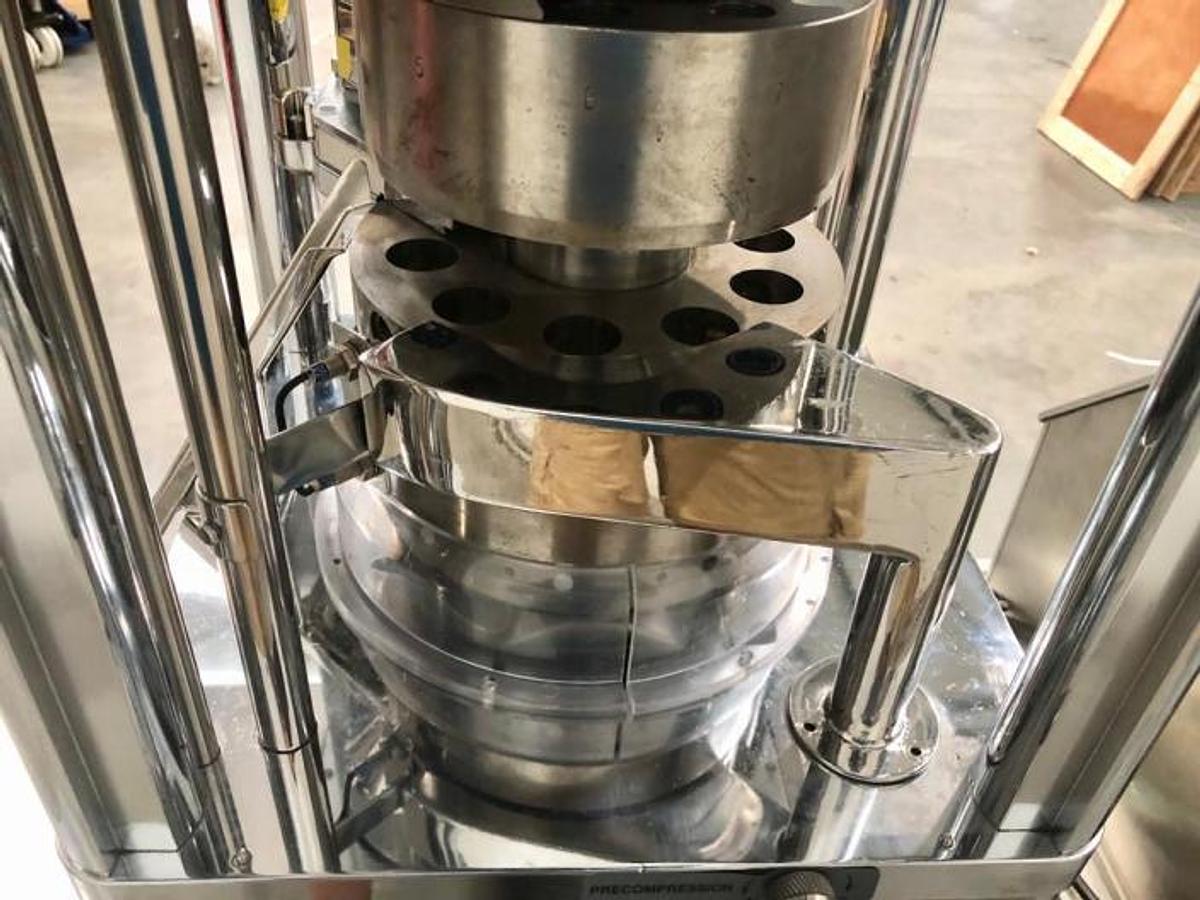

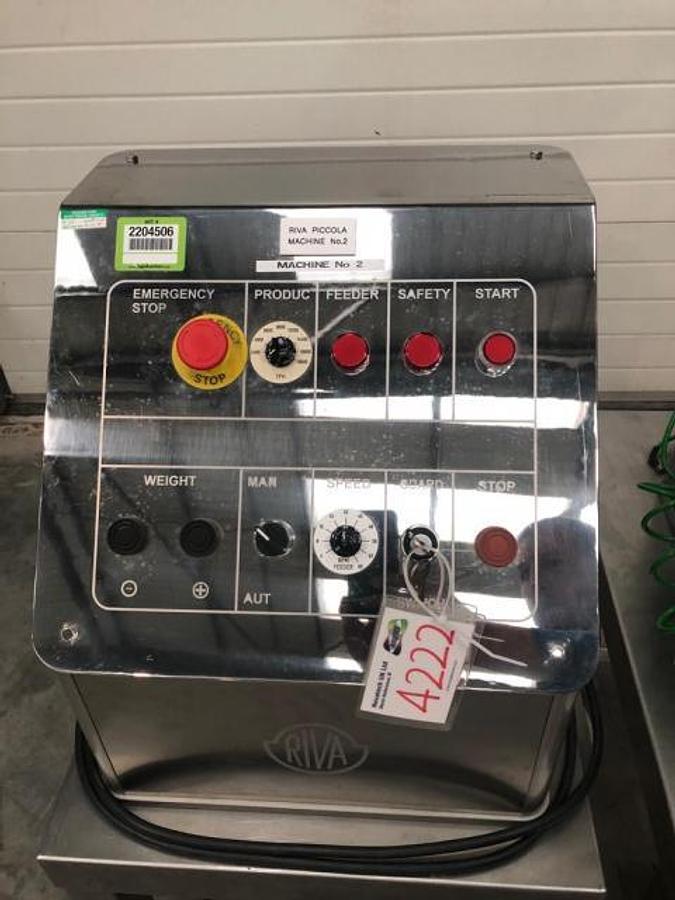

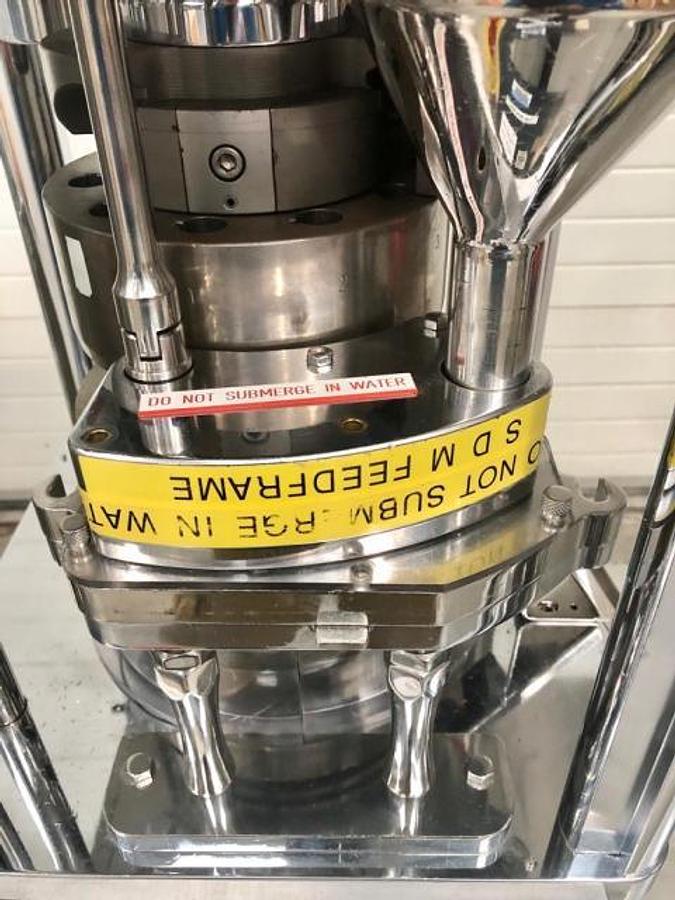

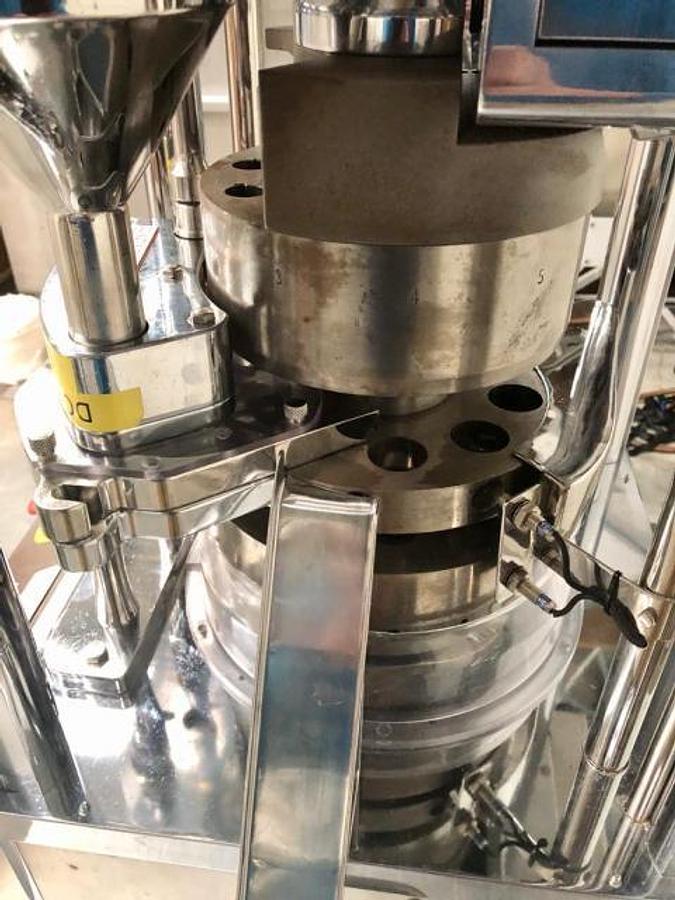

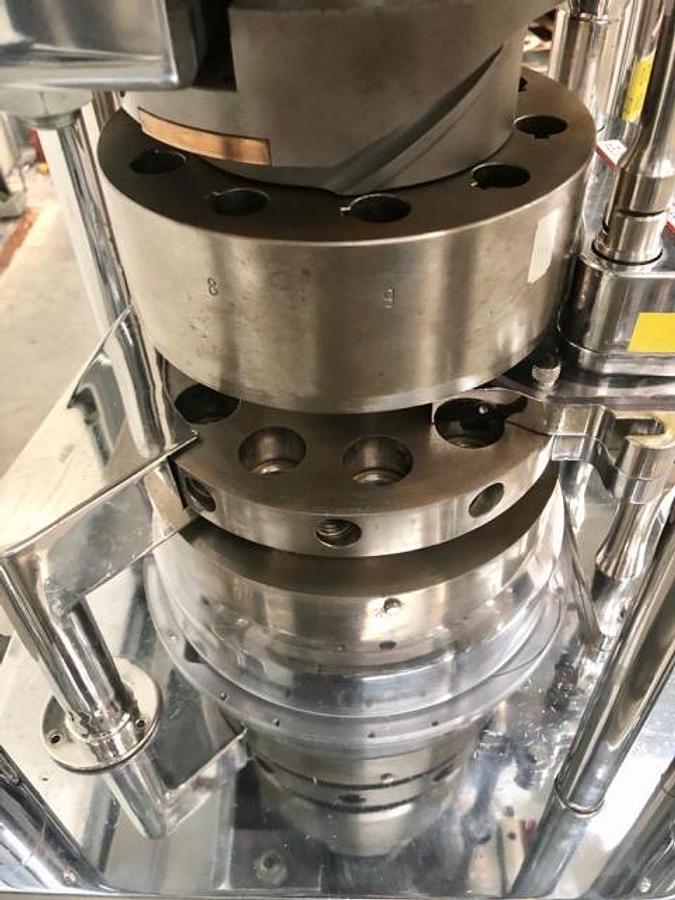

Riva Piccola rotary tablet press

The Riva PICCOLA rotary tablet press table top mounted compact design. With already more than 500 Piccola tablet press units installed worldwide mostly in the R & D field but also in Pilot Scale and Small Scale facilities. The Piccola is a small bench top rotary tablet press specially developed for Research & Development, Pilot Scale or Small Scale production batches. Easy compression of oblong tablets up to 25 x 10 mm. Accepts any format within a 22 mm diameter. Can be used either with forced or gravity feeder. Pre-compression system. Independent weight and hardness adjustments. Mechanical relief in case of overcharge. Damped electronic clutch. Possible implementation for pressing cycle control through a multiple software PC according to needs. Software designed for Galenic Development and Production Control. Compression force regulation carried out by mechanical device, through flexible washers.Manual lubrication. Quick format change and cleaning. Designed according to GMP standards; surfaces treated with hard chrome or stainless steel, quality AISI 316. Eight safety interlocked doors allow easy access to all parts TECHNICAL INFO Tooling TSM or EU B Maximum tablet diameters 16 mm Number stations 10 Output 2.000/30.000 Compression force max. 60 KN Upper punch penetration 0-6 mm Depth of fill 17 mm Pitch diameter 150 mm Power consumption 10:2 KW Net weight 295 Kg. Gross weight 360 Kg.
