Sinclair Process Mixing Suite

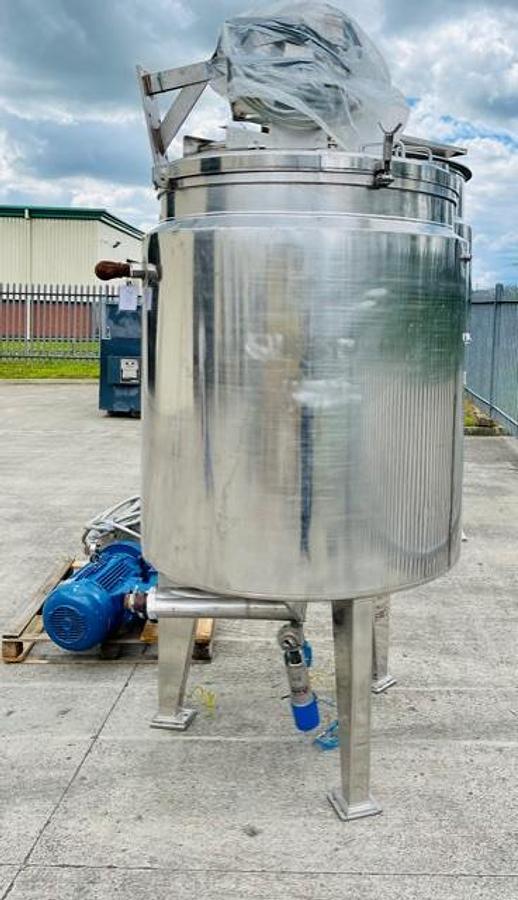

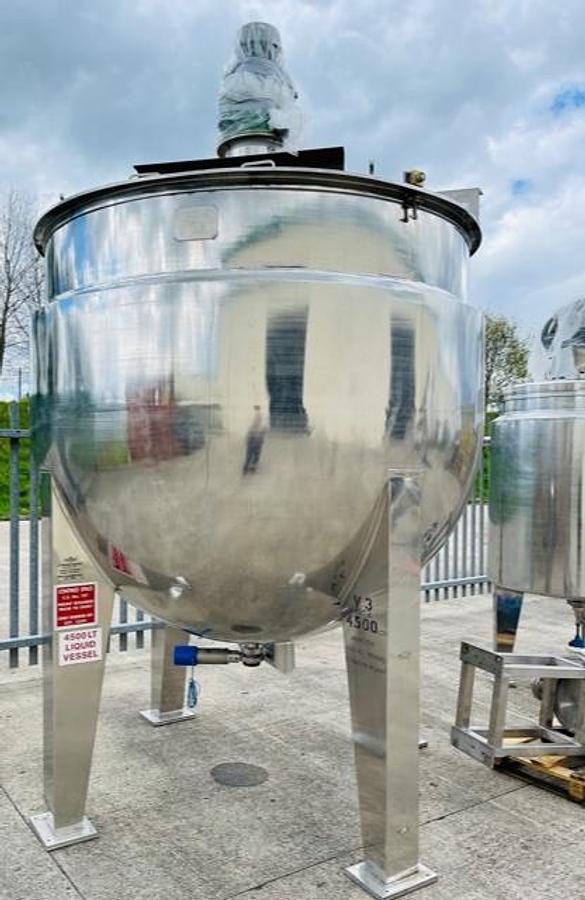

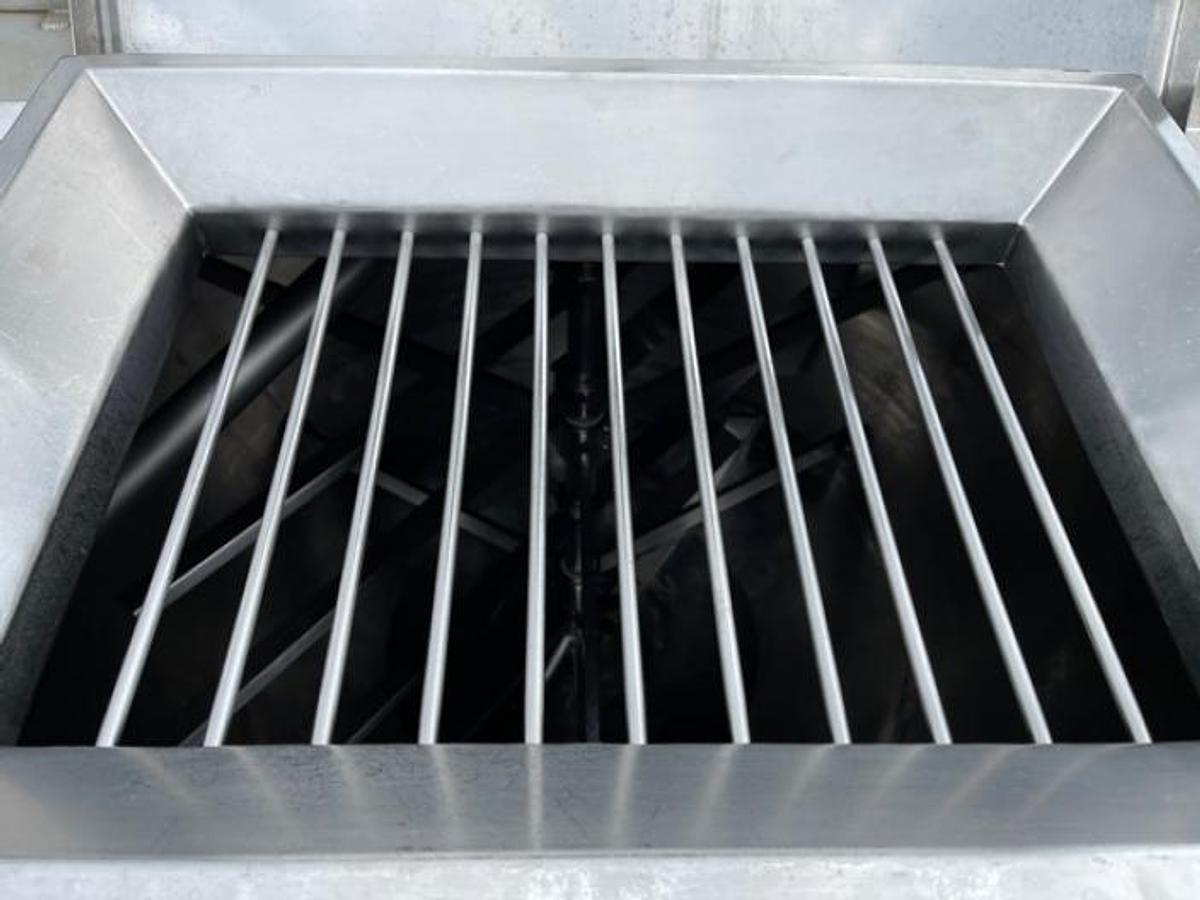

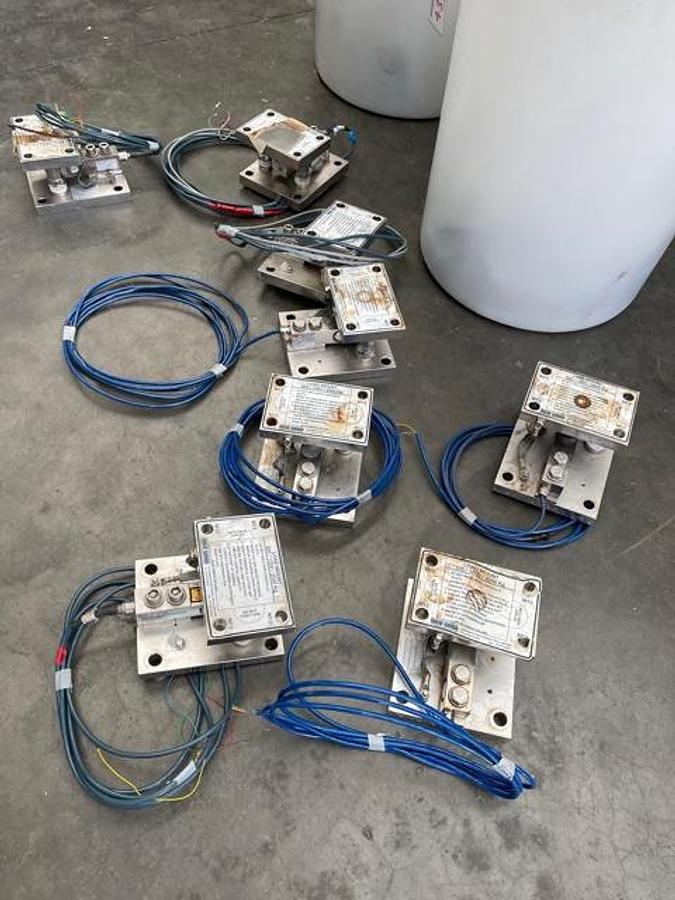

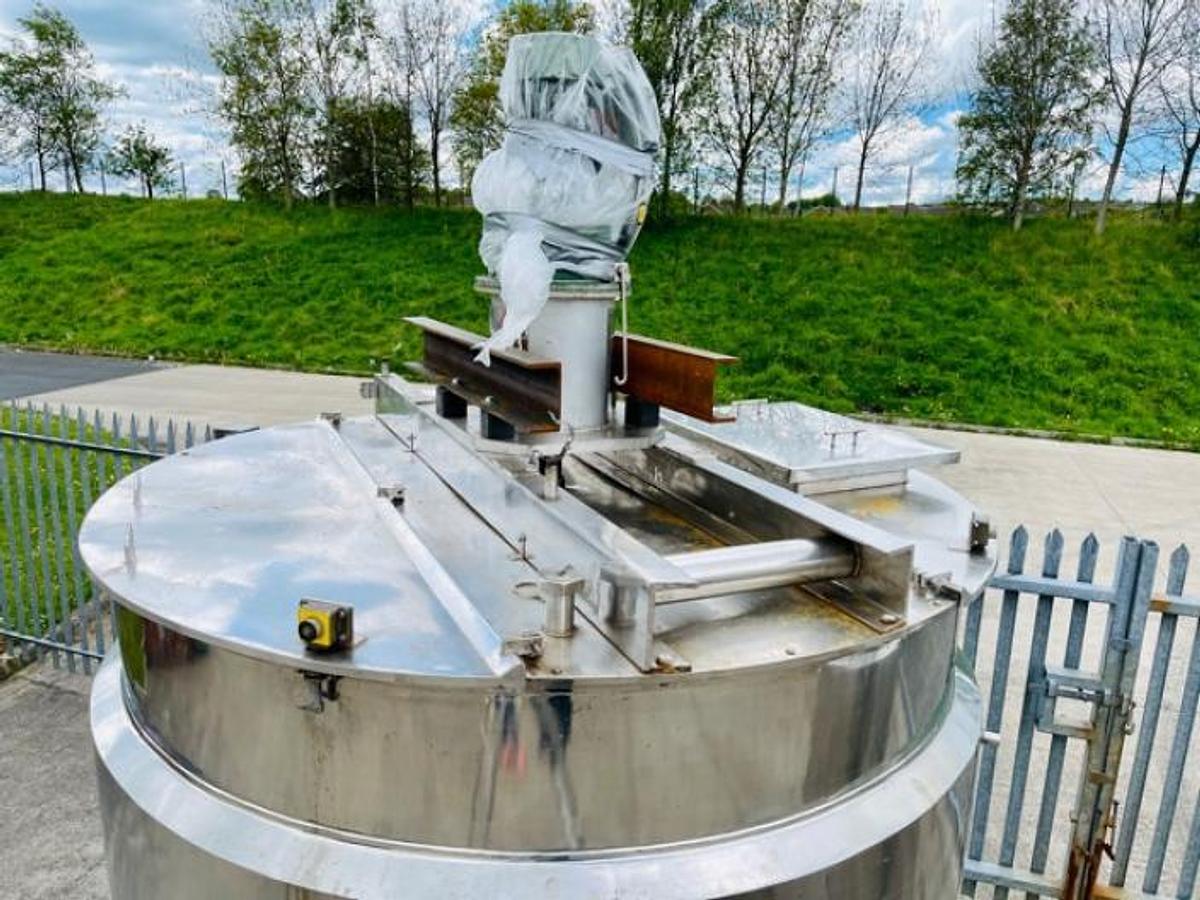

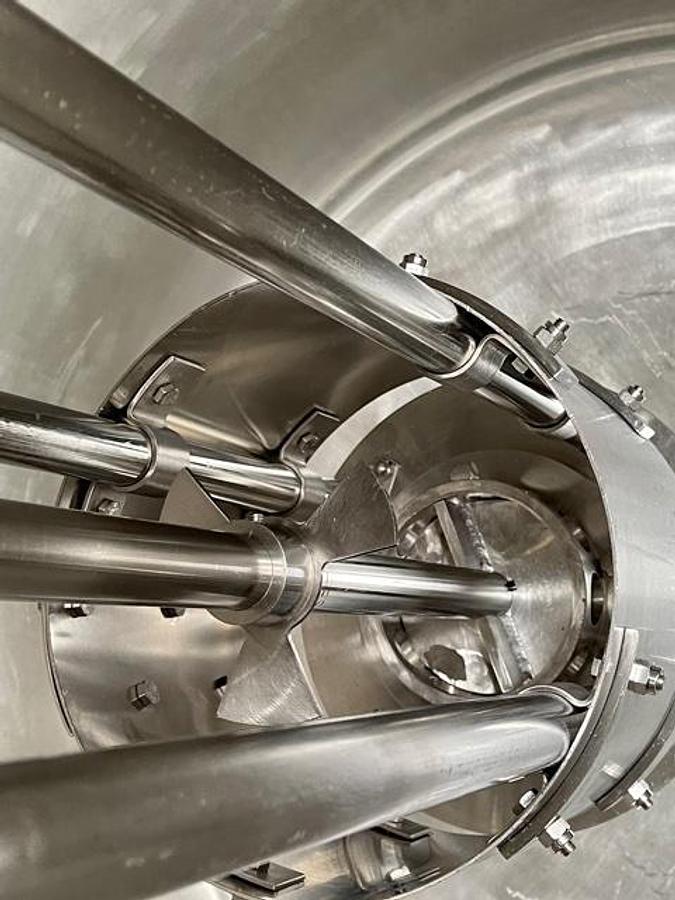

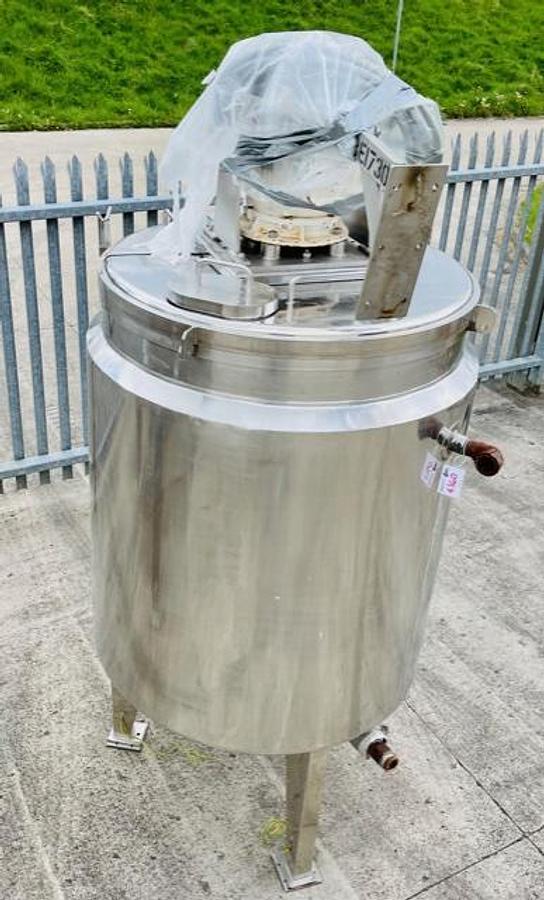

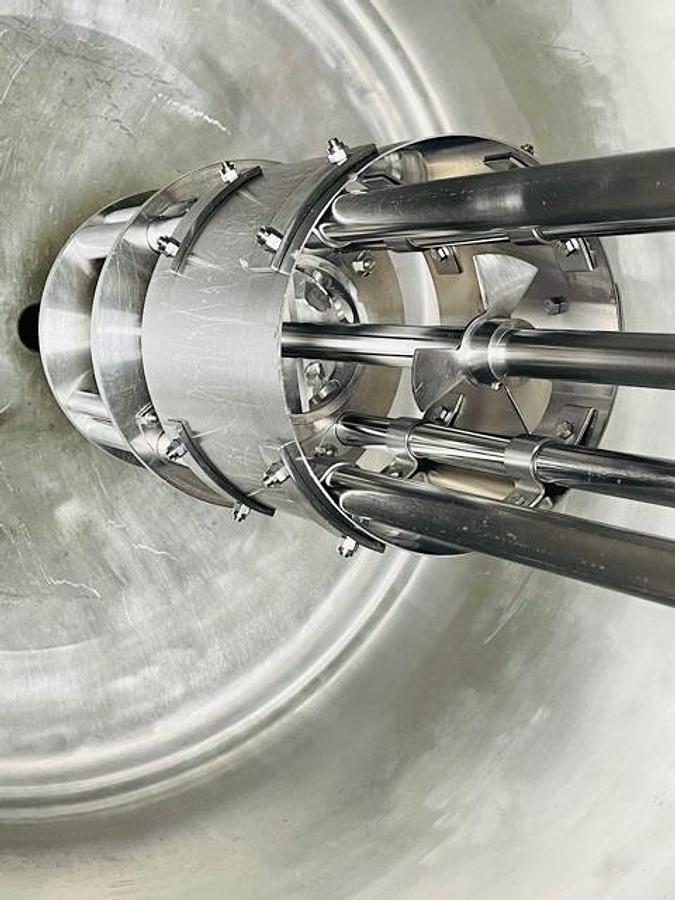

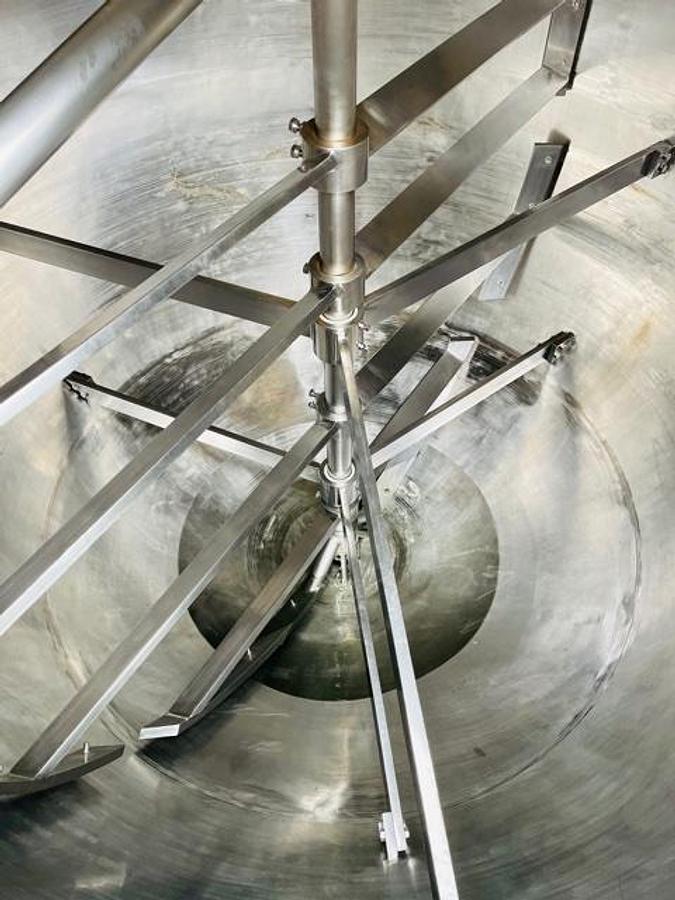

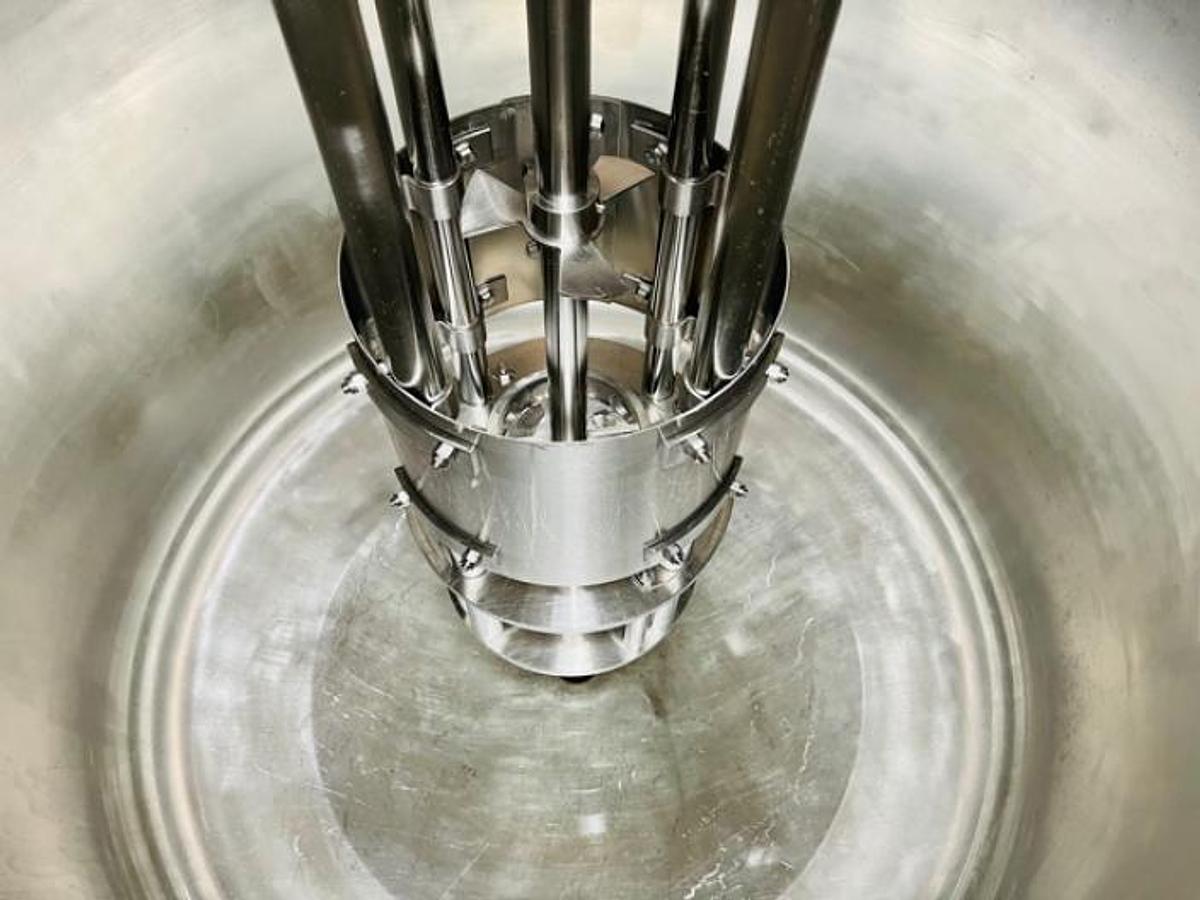

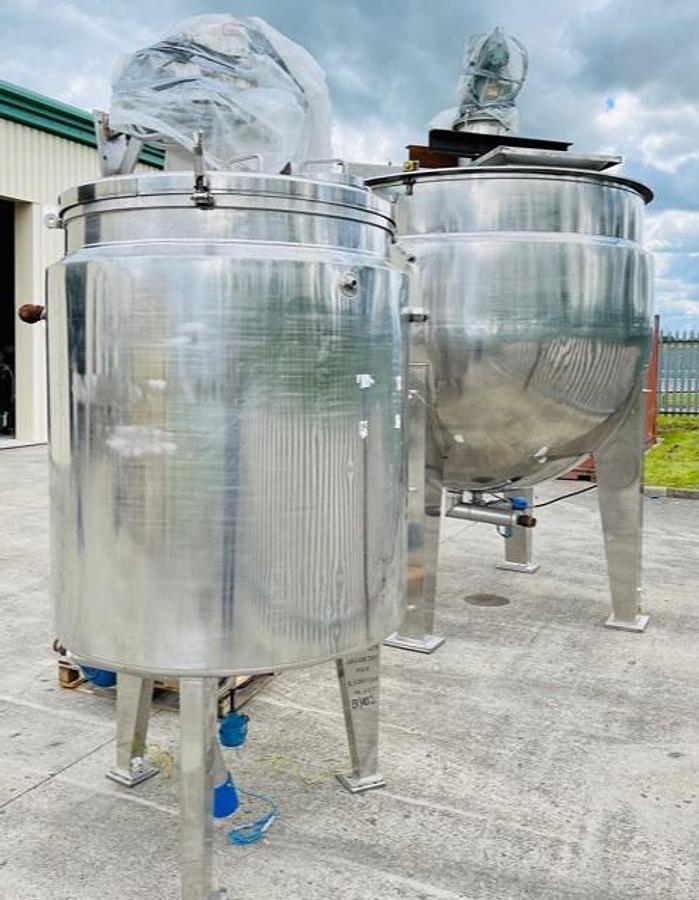

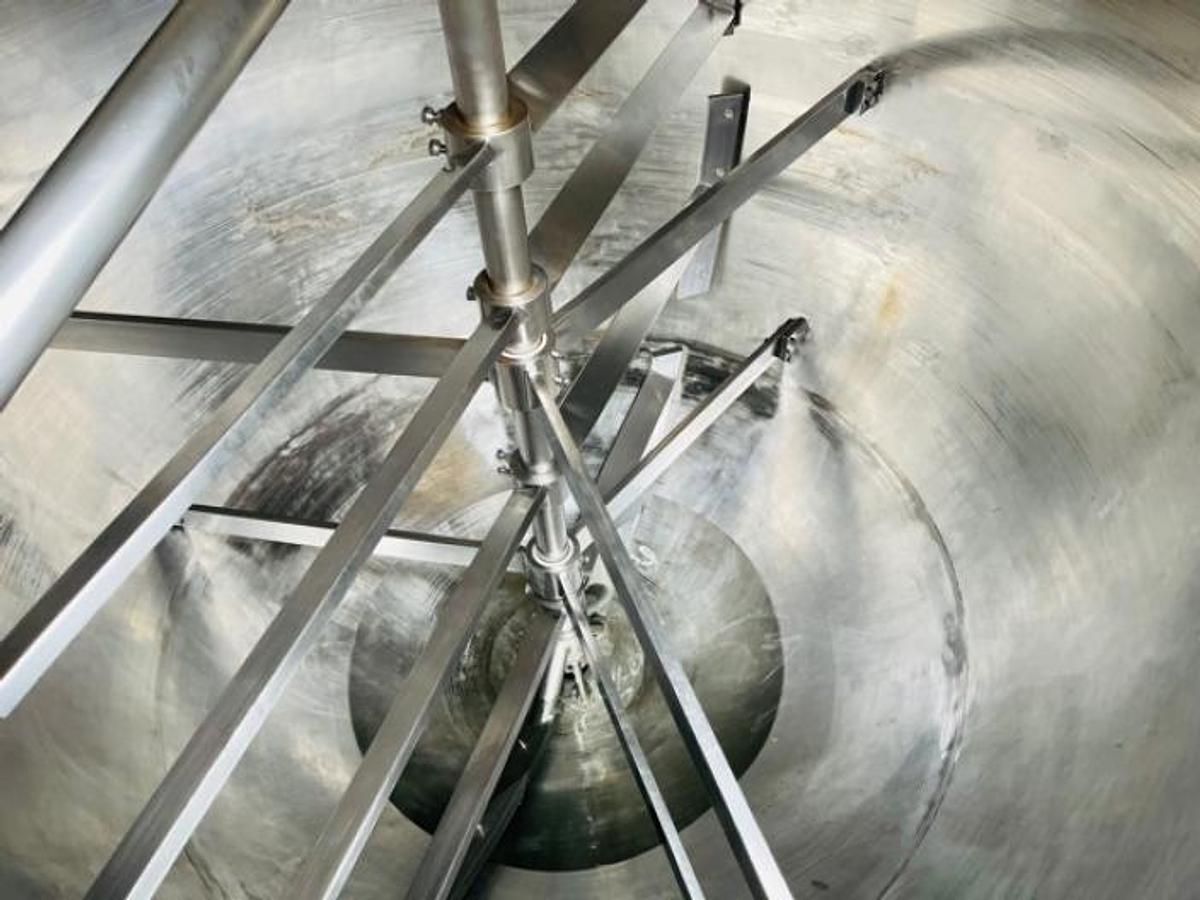

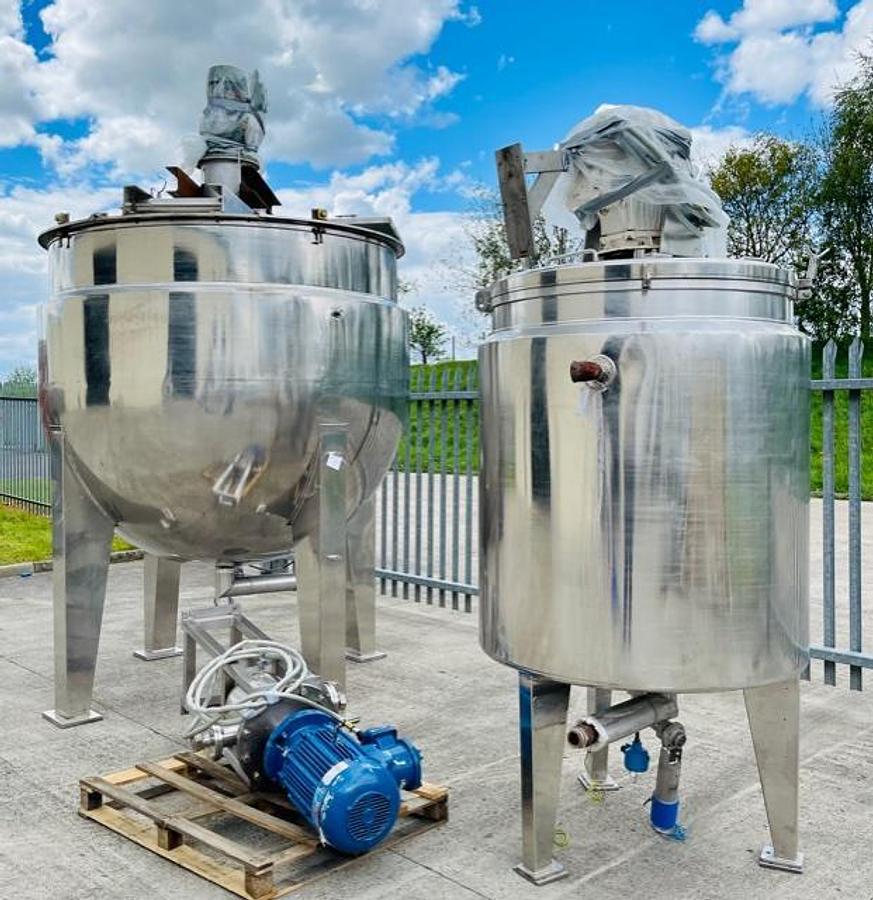

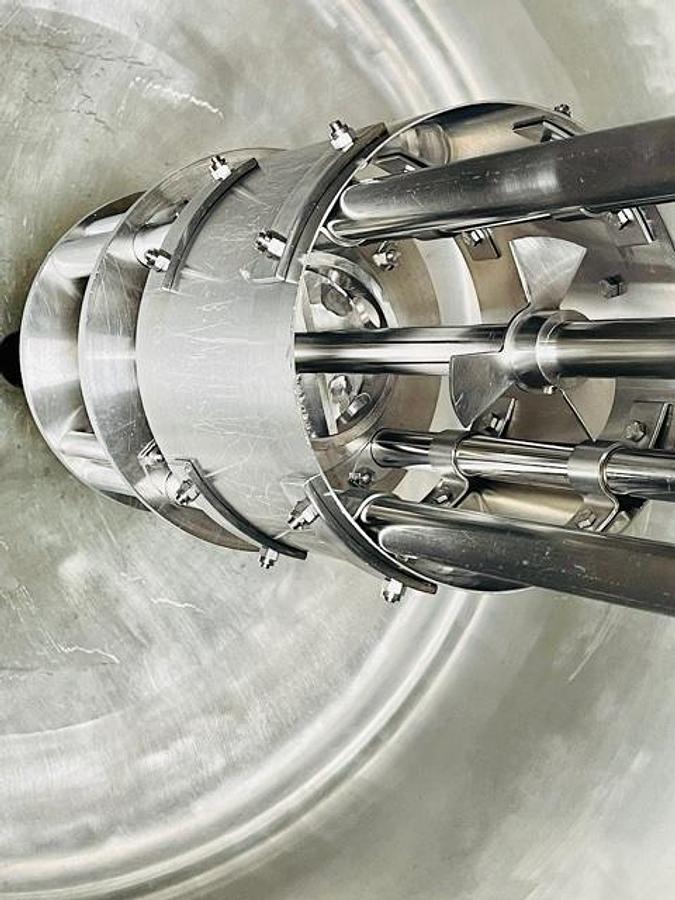

Sinclair 316 st.stl process/mixing suite comprising of the following items. Eexd FLP rated system Process Vessel 4500ltr pharma grade jacketed mirror polished internal/external finish hemispherical mixing vessel. Full profile scraped wall mixer driven from a 4kw 1420rpm Eexd FLP motor with speed reduction gearbox and fixed baffle system. 2 half hinged manway covers. 800mm x 600mm chargeport with safety grid and lid. 1 x 25mm & 1 x 50mm dia top connections. Jacket ratings 3.1 bar W.P/4.5 bar T.P 75mm dia outlet valve with pnuematic actuation. Load cells system Dimensions. Vessel dia 2000mm, vessel height to lid 2800mm, total height 4000mm, outlet to ground 700mm Premix Vessel 1200ltr pharma grade jacketed mirror polished internal/external mixing vessel. Silverson model GX Duplex twin head high speed homogeniser mixer driven by 18.5Kw 2980rpm Eexd FLP motor. 2 x 300mm chargeport with lids. Hydraulic rasie and lower top lid inc mixer. 50mm dia outlet with pneumatic actuation. Dimensions 1260mm dia.  2300mm to vessel lip, total height 2900mm. Outlet to ground 1260mm Storage Vessels 2 x 5000ltr storage vessels with 500mm dia chargeport with hinged lid, 0-10 bar pressure gauge. 50mm dia outlet with pneumatic actauation. Dimensions.  2200mm dia x 2900mm height Silverson inline homogeniser, model GX 18.5kw 2980rpm Eexd FLP motor, mounted on stainless steel frame.
