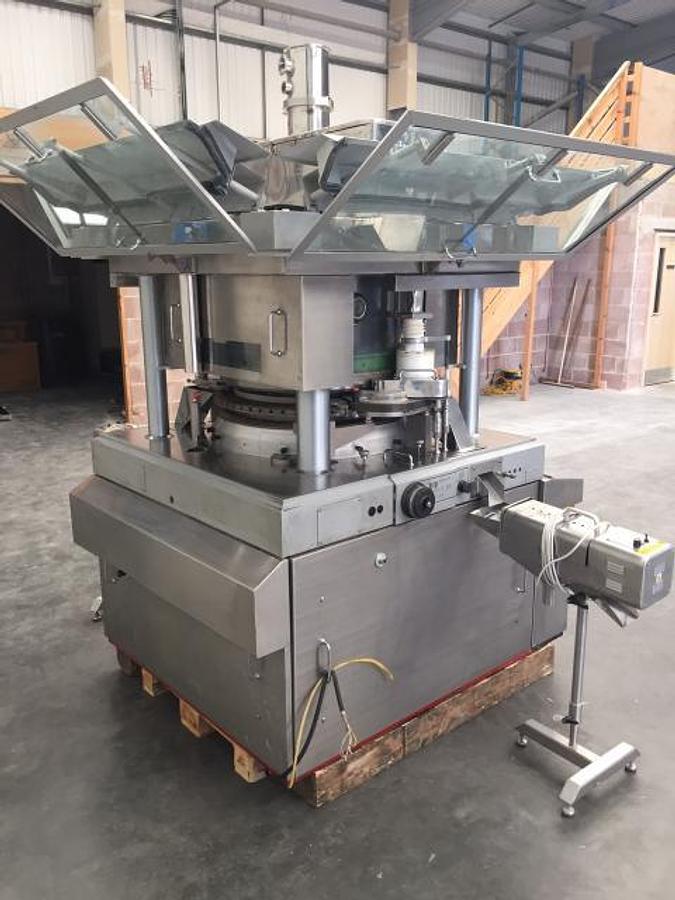

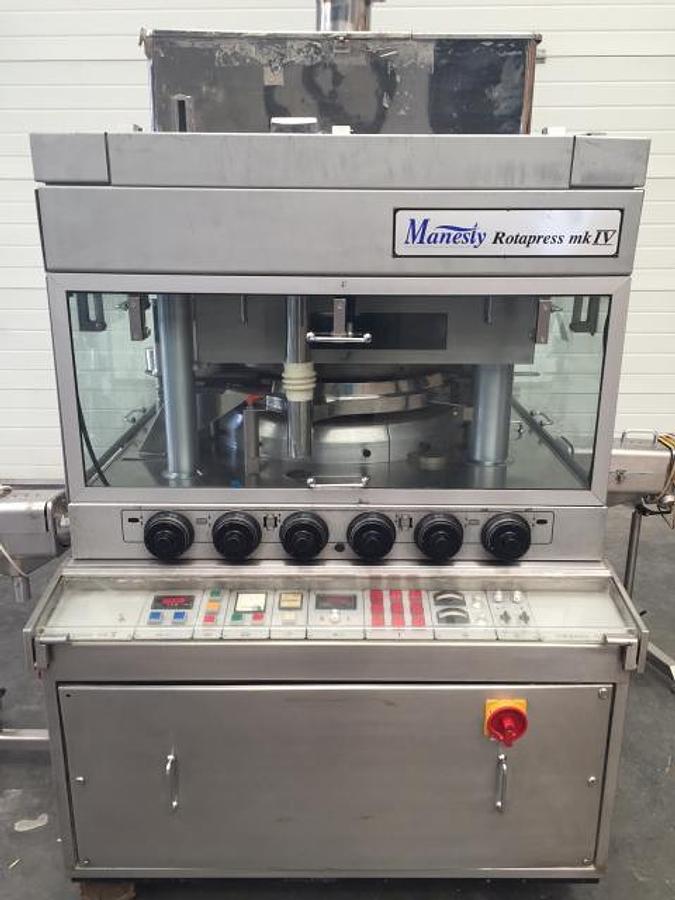

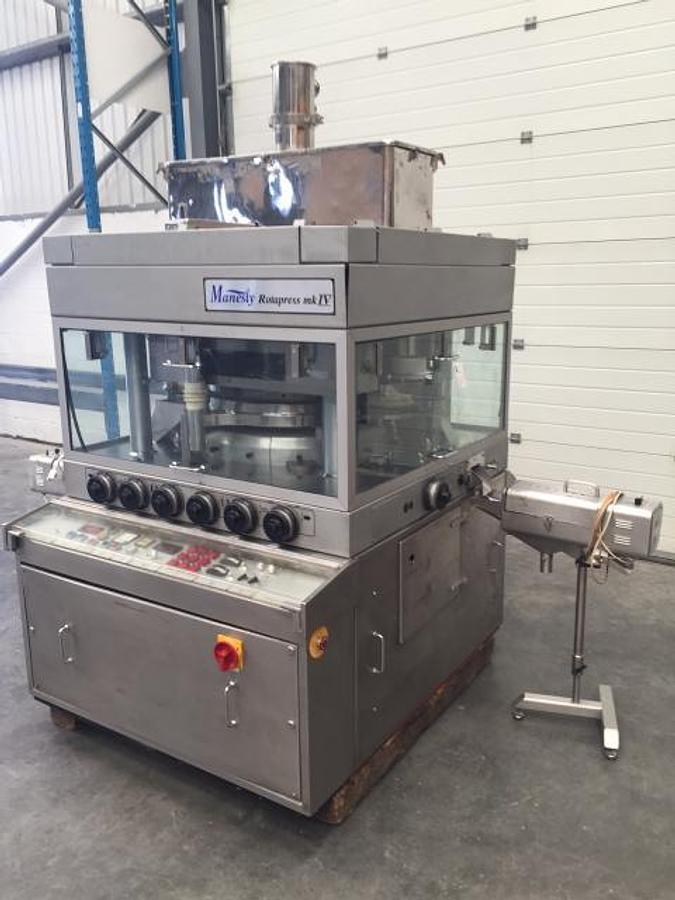

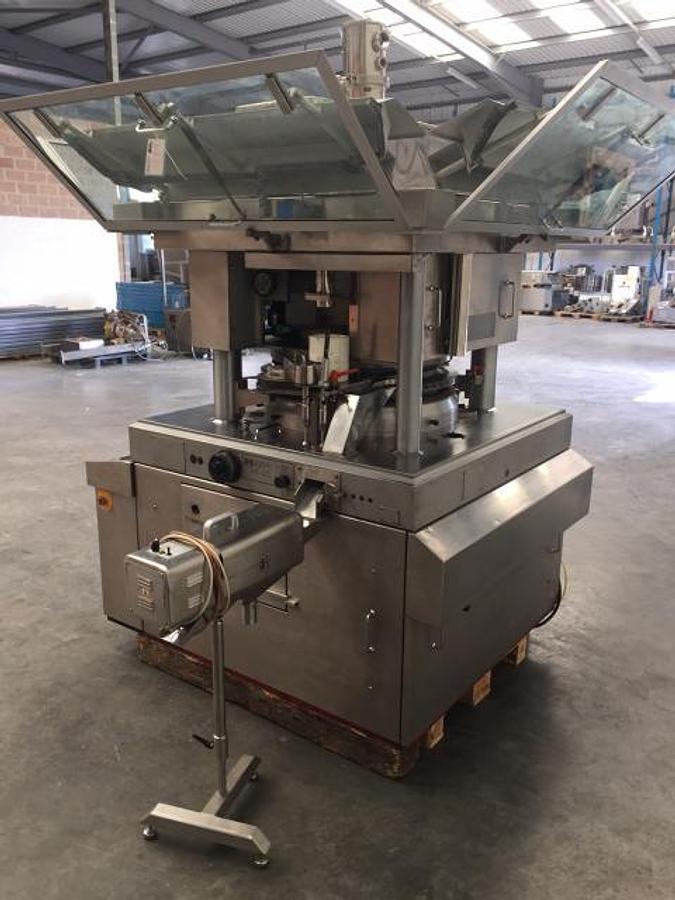

Manesty Rotapress Mark IV, 55 station

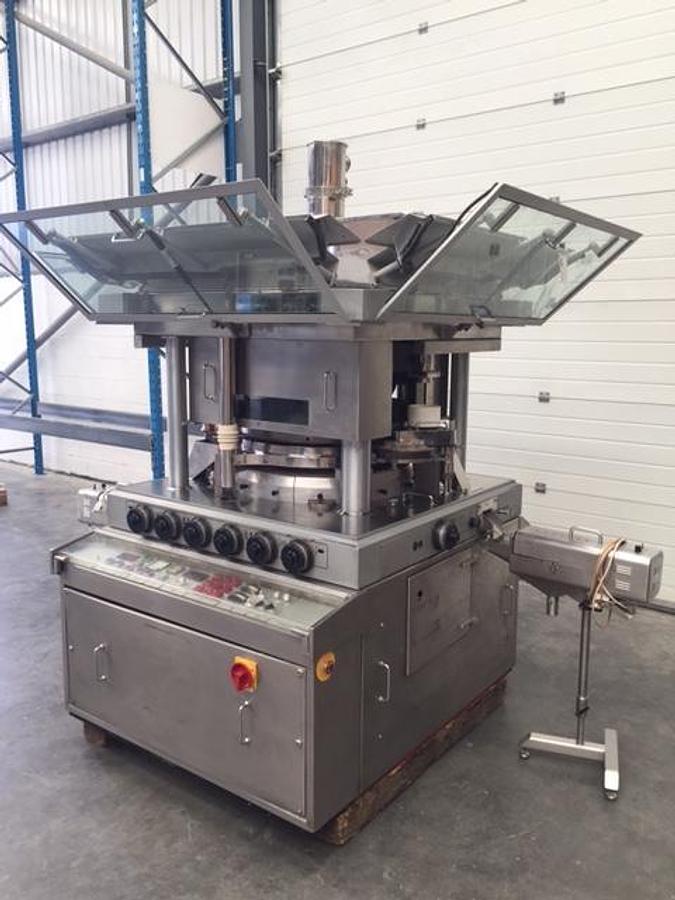

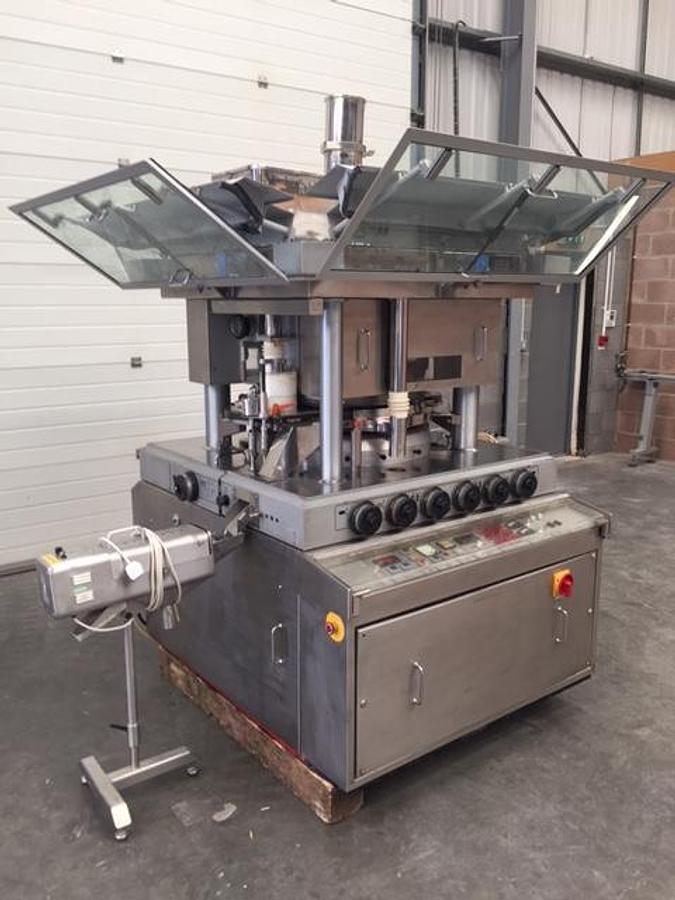

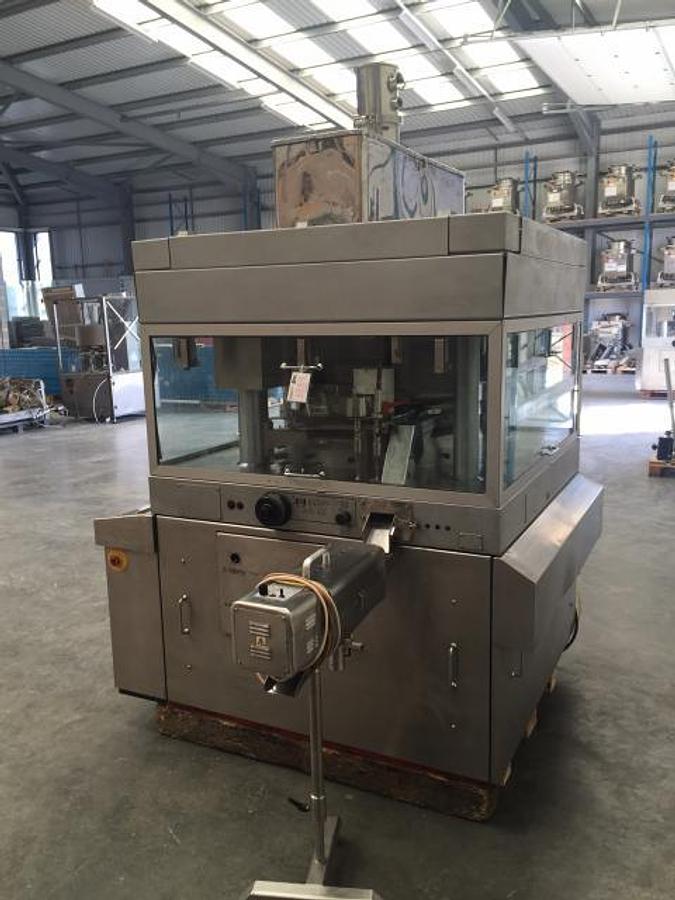

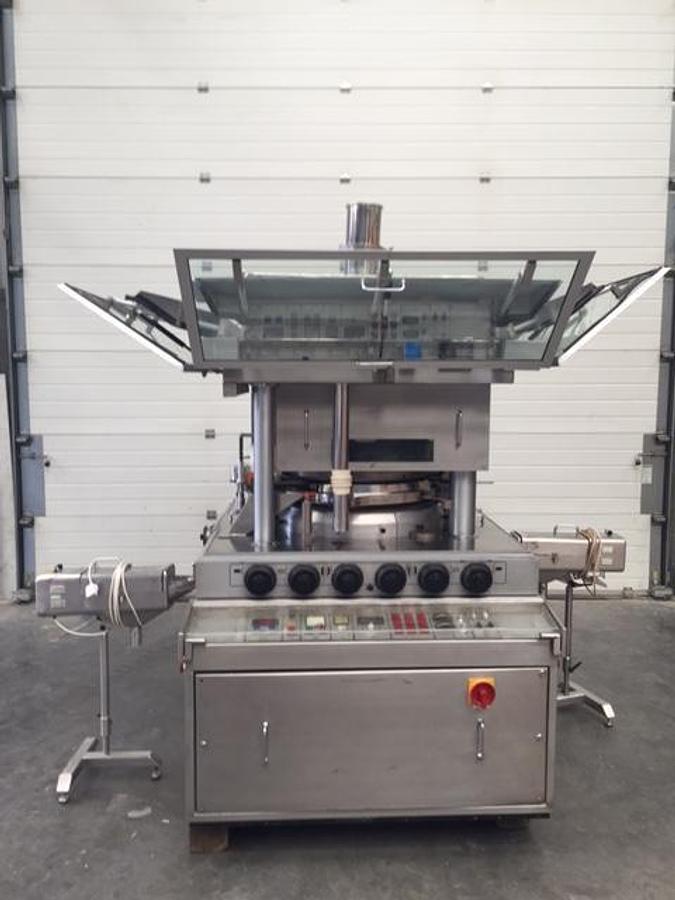

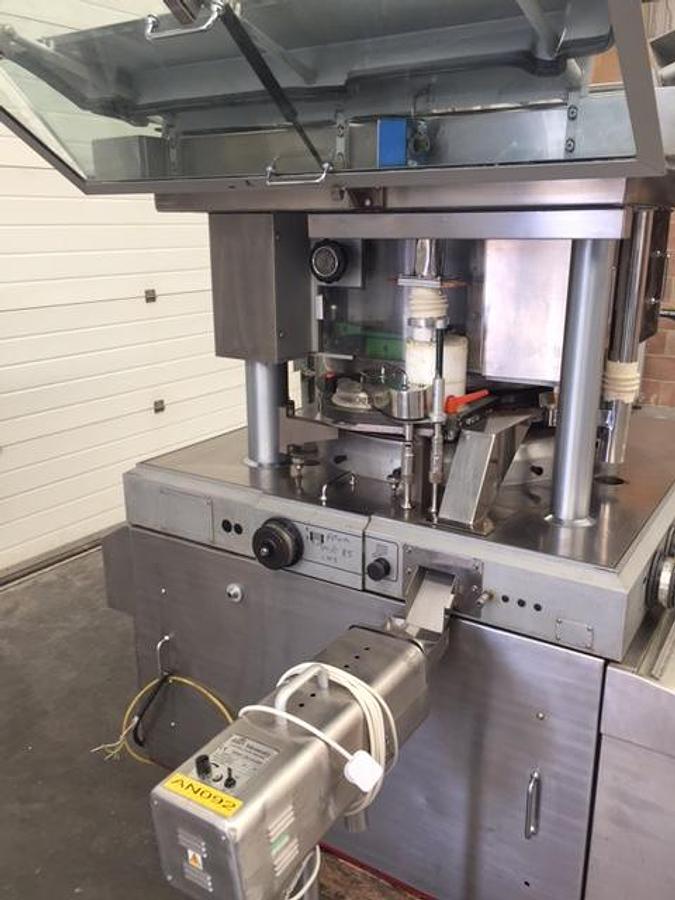

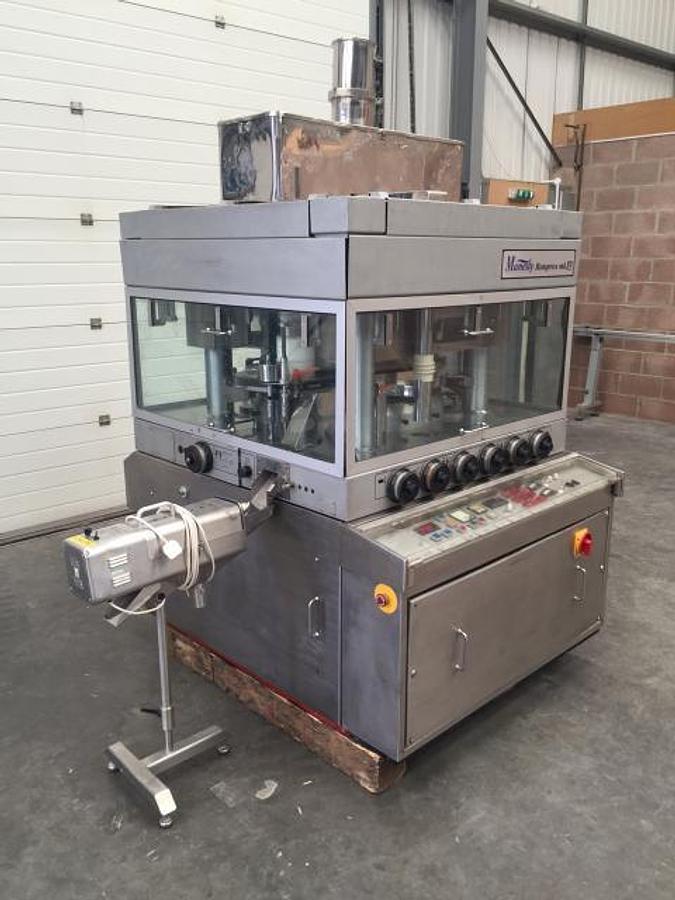

MANESTY  Rotapress  mk lV.  High speed rotary tablet compression machine suitable for running a wide range of products, specification details:- 55 station turret for Euro-norm ”B” type punches and dies. Keyway to upper punch guides for the manufacture of caplet and other shaped tablets. Double sided compression with pre-compression feature and quick change rotary power feeders Maximum tablet dia. 16.0 mm Maximum depth of die fill. 17.4 mm Maximum tablet production output: 600,00 per hour (10,000 per min) Upper punch entry: 1.5 - 8 mm Maximum compaction force: 6.5 - 10 tonnes Motor power: 7.5kw Machine weight: 3.745 tonnes. Approx overall dimensions: 1670 x 1625 x 1910mm high. Other features. Centralised lubrication system Integrated support frames for attachment of Manesty TD25 de-dusters. Fully guarded with electrical safety interlock system. Large capacity stainless steel product feed hopper. Tight punch detector. Dust extraction system. Pressure rolls sealed bearings. Hydro-pneumatic overload system The Manesty TD25 deduster shown in the photographs is available as an additional item and can be quoted for if required.
