110L stainless steel mixing vessel

110L stainless steel mixing vessel
or
Call +44 (0) 191 492 0407
Description

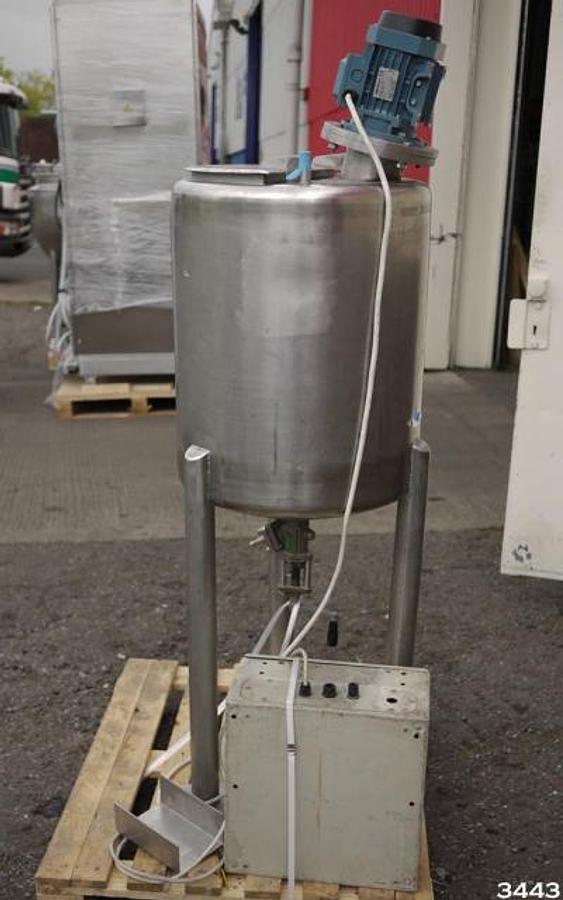

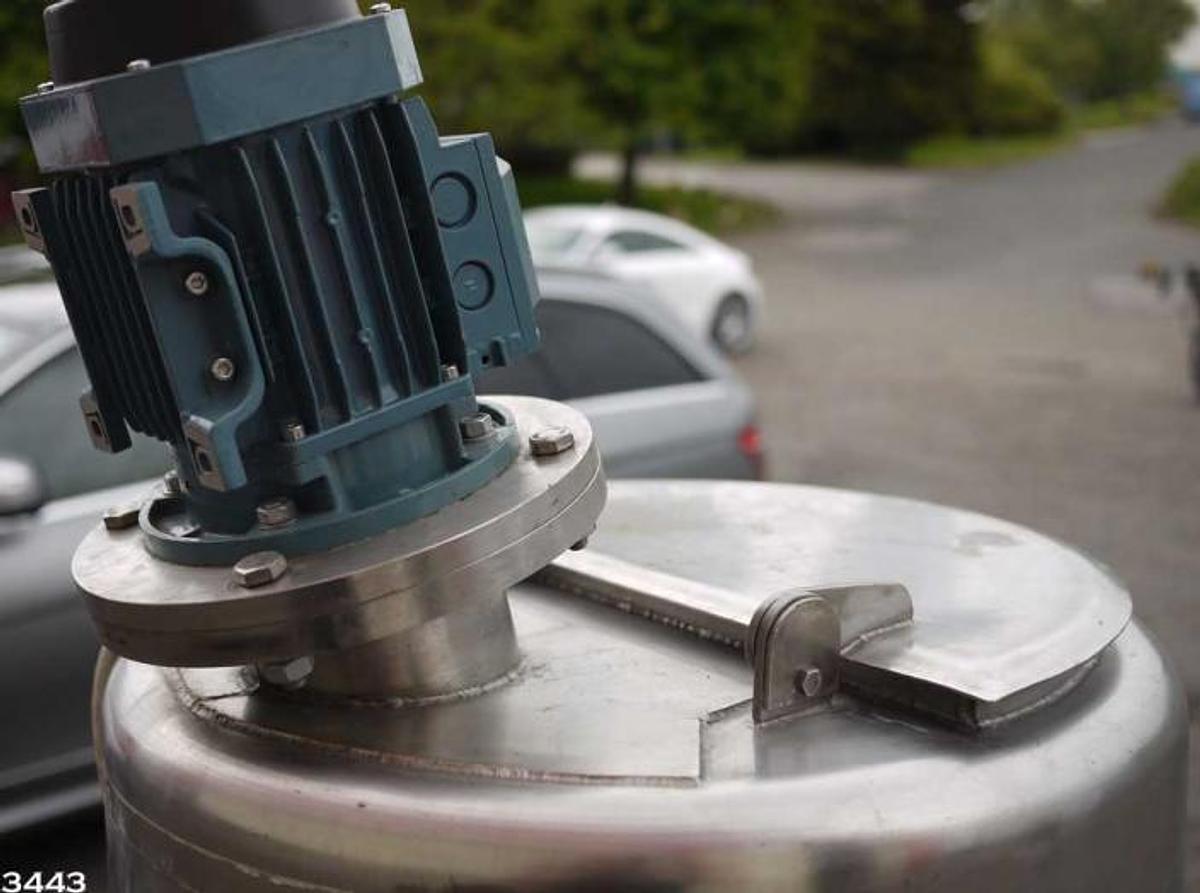

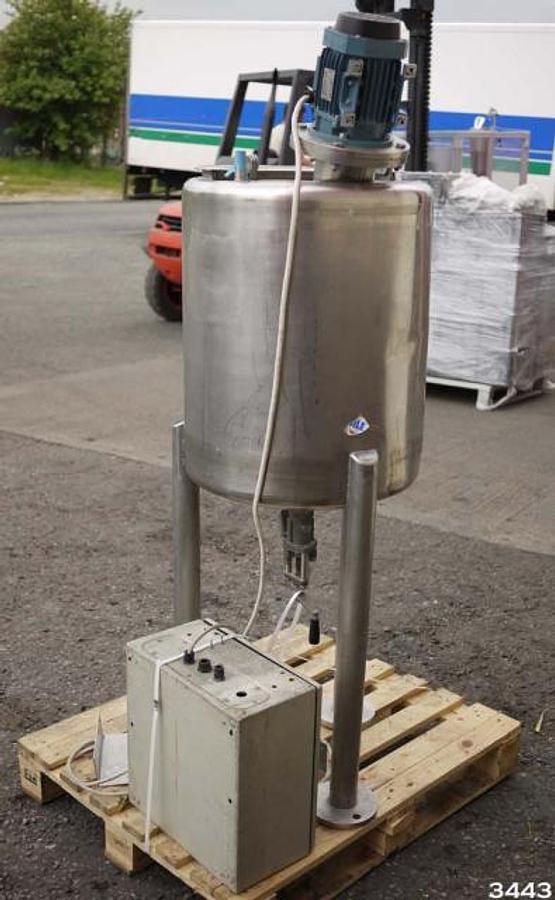

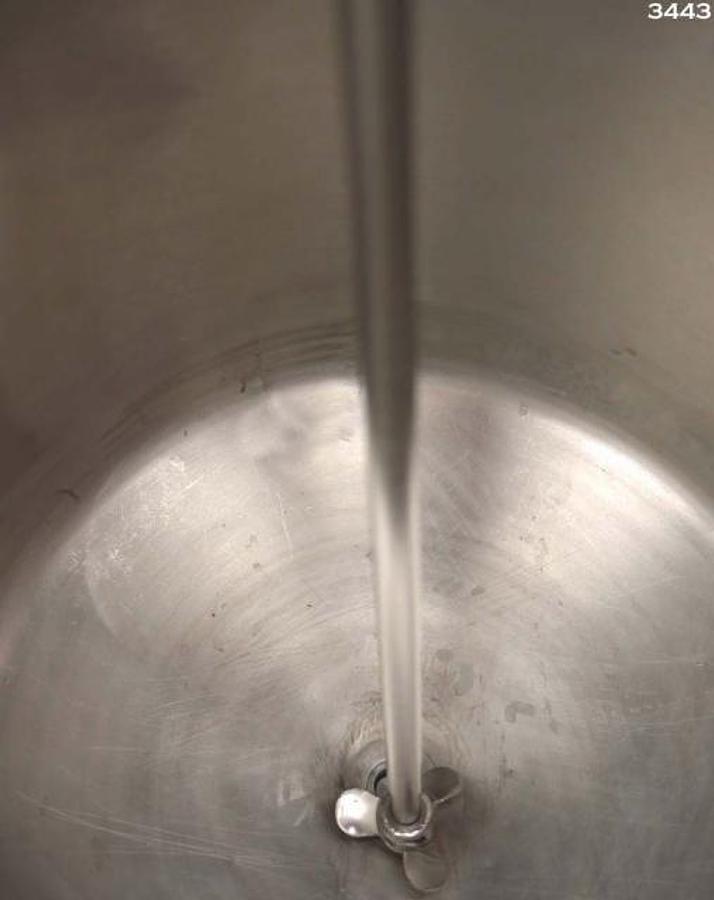

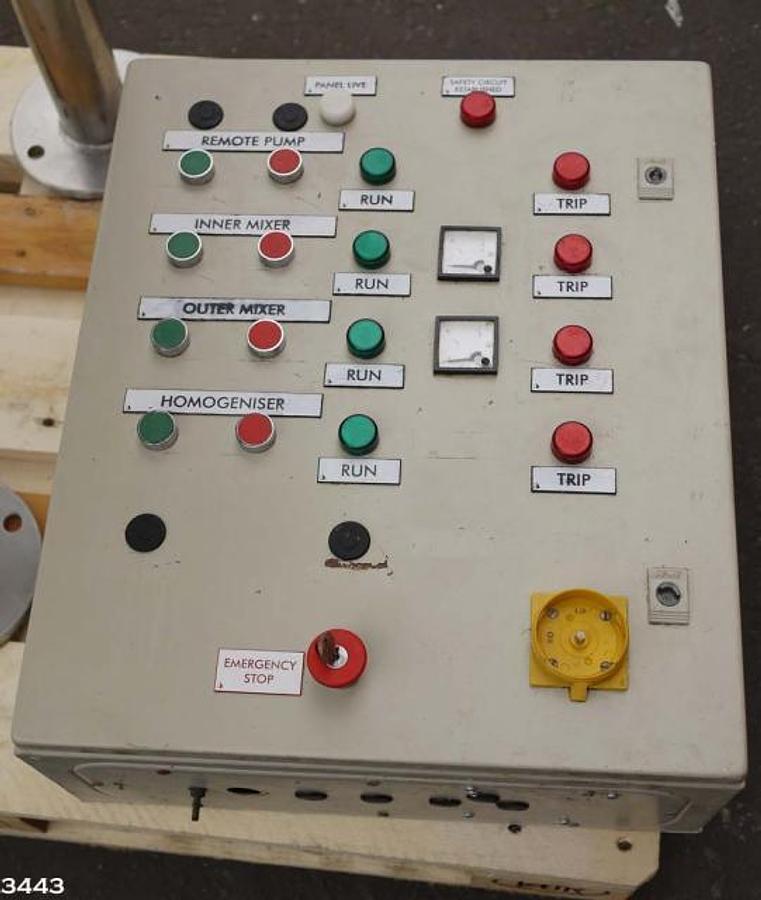

Stainless steel cylindrical vessel with dished ends. 460mm dia x 660mm deep, approx gross capacity 110 litres. Offset mounted (approx 15°) mixer with a 20mm dia shaft and three blade 80mm dia propellor type mixing head driven from a 0.37kw 2870rpm motor. The vessel has a 20mm bottom outlet with a flush fitting valve attached. The top dish has a 410mm x 200mm hinged lift up access panel. Mounted onto three 75mm dia stainless steel legs. Separate control box with EStop and ammeters. Overall dimensions 1300mm to top dish; 1600mm to motor top.
Specifications
| Condition | Used |
| Stock Number | 3443 |
